Cross-ISA Machine Instrumentation using Fast and Scalable
Dynamic Binary Translation

Emilio G. Cota
Luca P. Carloni

VEE'19

April 14, 2019
Providence, RI

Columbia University

Motivation

Dynamic Binary Translation (DBT) is widely used, e.g.

Computer architecture simulation
Software/ISA prototyping (a.k.a. emulation, virtual platforms)
Dynamic analysis (security, correctness)

DBT state of the art

	Speed	Cross-ISA	Full-system
DynamoRIO	✔ Fast	✘	✘
Pin	✔ Fast	✘	✘
QEMU (& derivatives)	✘ Slow	✔	✔

Pin/DynamoRIO are instrumentation tools
Several QEMU-derived tools add instrumentation to QEMU
- e.g. DECAF, PANDA, PEMU, QVMII, QTrace, TEMU
- However, they widen the perf gap with DynamoRIO/Pin

Motivation

Fast, cross-ISA, full-system instrumentation

Our goal:

How fast?

Goal: match Pin's speed when using it for simulation
- Note that Pin is same-ISA, user-only

Fast, cross-ISA, full-system instrumentation

How to get there? Need to:

Increase emulation speed and scalability
- QEMU is slower than Pin, particularly for full-system and floating point (FP) workloads
- QEMU does not scale for workloads that translate a lot of code in parallel, e.g. parallel compilation in the guest
Support fast, cross-ISA instrumentation of the guest

QEMU*

Open source: https://www.qemu.org

Widely used in both industry and academia

Supports many ISAs through DBT via TCG, its Intermediate Representation (IR)

Complex instructions are emulated in "helper" functions (not pictured)

Our contributions are not QEMU-specific

They are applicable to cross-ISA DBT tools at large

[*] Bellard. "QEMU, a fast and portable dynamic translator", ATC, 2005

QEMU baseline

DBT of user-space code only
System calls are run natively on the host machine

Emulates an entire machine, including guest OS + devices
QEMU uses one host thread per guest vCPU ("multi-core on multi-core") [*]
- Parallel code execution, serialized code translation with a global lock

User-mode (QEMU-user)

System-mode (QEMU-system)

[*] Cota, Bonzini, Bennée, Carloni. "Cross-ISA Machine Emulation for Multicores", CGO, 2017

Qelt's contributions

Emulation Speed

Correct cross-ISA FP emulation using the host FPU
Integration of two state-of-the-art optimizations:
- indirect branch handling
- dynamic sizing of the software TLB
Make the DBT engine scale under heavy code translation
- Not just during execution

Instrumentation

4. Fast, ISA-agnostic instrumentation layer for QEMU

1. Cross-ISA FP Emulation

Rounding, NaN propagation, exceptions, etc. have to be emulated correctly
Reading the host FPU flags is very expensive
- soft-float is faster, which is why QEMU uses it

Qelt uses the host FPU for a subset of FP operations, without ever reading the host FPU flags
- Fortunately, this subset is very common
- defers to soft-float otherwise

baseline (incorrect): always uses the host FPU and never reads excp. flags

1. Cross-ISA FP Emulation

Common case:

A, B are normal or zero
Inexact already set
Default rounding

How common?

99.18%

of FP instructions in SPECfp06

float64 float64_mul(float64 a, float64 b, fp_status *st)
{
  float64_input_flush2(&a, &b, st);
  if (likely(float64_is_zero_or_normal(a) &&
             float64_is_zero_or_normal(b) &&
             st->exception_flags & FP_INEXACT &&
             st->round_mode == FP_ROUND_NEAREST_EVEN)) {
    if (float64_is_zero(a) || float64_is_zero(b)) {
      bool neg = float64_is_neg(a) ^ float64_is_neg(b);
      return float64_set_sign(float64_zero, neg);
    } else {
      double ha = float64_to_double(a);
      double hb = float64_to_double(b);
      double hr = ha * hb;
      if (unlikely(isinf(hr))) {
        st->float_exception_flags |= float_flag_overflow;
      } else if (unlikely(fabs(hr) <= DBL_MIN)) {
        goto soft_fp;
      }
      return double_to_float64(hr);
    }
  }
soft_fp:
  return soft_float64_mul(a, b, st);
}

.. and similarly for 32/64b + , - , \(\times\) , \(\div\), \( \surd\), ==

2. Other Optimizations

derived from state-of-the-art DBT engines

B. Dynamic TLB resizing (full-system)

Virtual memory is emulated with a software TLB
Tong et al. [B] present TLB resizing based on TLB use rate at flush time
- We improve on it by incorporating history to shrink less aggressively
  - Rationale: if a memory-hungry process was just scheduled out, it is likely that it will be scheduled in in the near future

A. Indirect branch handling

We implement Hong et al.'s [A] technique to speed up indirect branches
- We add a new TCG operation so that all ISA targets can benefit

[A] Hong, Hsu, Chou, Hsu, Liu, Wu. "Optimizing Control Transfer and Memory Virtualization in Full System Emulators", ACM TACO, 2015

[B] Tong, Koju, Kawahito, Moshovos. "Optimizing memory translation emulation in full system emulators", ACM TACO, 2015

Indirect branch + FP improvements

user-mode x86_64-on-x86_64. Baseline: QEMU v3.1.0

TLB resizing

full-system x86_64-on-x86_64. Baseline: QEMU v3.1.0

+TLB history: takes into account recent usage of the TLB to shrink less aggressively, improving performance

3. Parallel code translation

with a shared translation block (TB) cache

Monolithic TB cache (QEMU)

Partitioned TB cache (Qelt)

Parallel TB execution (green blocks)

Serialized TB generation (red blocks) with a global lock

Parallel TB execution

Parallel TB generation (one region per vCPU)

vCPUs generate code at different rates
- Appropriate region sizing ensures low code cache waste

Parallel code translation

Guest VM performing parallel compilation of Linux kernel modules, x86_64-on-x86_64

QEMU scales for parallel workloads that rarely translate code, such as PARSEC [*]
However, QEMU does not scale for this workload due to contention on the lock serializing code generation

+parallel generation removes the scalability bottleneck
- Scalability is similar (or better) to KVM's

[*] Cota, Bonzini, Bennée, Carloni. "Cross-ISA Machine Emulation for Multicores", CGO, 2017

4. Cross-ISA Instrumentation

QEMU cannot instrument the guest

Would like plugin code to receive callbacks on instruction-grained events
- e.g. memory accesses performed by a particular instruction in a translated block (TB), as in Pin

4. Cross-ISA Instrumentation

Instrumentation with Qelt

Qelt first adds "empty" instrumentation in TCG, QEMU's IR
Plugins subscribe to events in a TB
- They can use a decoder; Qelt only sees opaque insns/accesses
Qelt then substitutes "empty" instrumentation with the actual calls to plugin callbacks (or removes it if not needed)

Other features (see paper): direct callbacks, inlining, helper instrumentation

Full-system instrumentation

x86_64-on-x86_64 (lower is better). Baseline: KVM

Qelt faster than the state-of-the-art, even for heavy instrumentation (cachesim)

User-mode instrumentation

x86_64-on-x86_64 (lower is better). Baseline: native

Qelt has narrowed the gap with Pin/DRIO for no instr., although for FP the gap is still significant
DRIO is not designed for non-inline instr.
Qelt is competitive with Pin for heavy instrumentation (cachesim), while being cross-ISA

Qelt's impact

Instrumentation layer: under review by the QEMU community
Everything else: merged upstream, to be released in QEMU v4.0 (April'19)
- Contributions well-received (and improved!) by the QEMU community
We hope our work will enable further adoption of QEMU to perform cross-ISA emulation and instrumentation

Conclusions

Fast FP emulation leveraging the host FPU
Scalable DBT-based code generation
Fast, ISA-agnostic instrumentation layer
- Performance for simulator-like instrumentation is competitive with state-of-the-art same-ISA, user-mode emulators such as Pin

Qelt's contributions

Backup slides

FP per-op contribution

user-mode x86-on-x86

Qelt Instrumentation

Fine-grained event subscription when guest code is translated
- e.g. subscription to memory reads in Pin vs Qelt:

VOID Instruction(INS ins)
{
        if (INS_IsMemoryRead(ins))
                INS_InsertCall(ins, IPOINT_BEFORE, (AFUNPTR)MemCB, ...);
}
VOID Trace(TRACE trace, VOID *v)
{
        for (BBL bbl = TRACE_BblHead(trace); BBL_Valid(bbl); bbl = BBL_Next(bbl))
                for (INS ins = BBL_InsHead(bbl); INS_Valid(ins); ins = INS_Next(ins))
                        Instruction(ins);
}

static void vcpu_tb_trans(qemu_plugin_id_t id, unsigned int cpu_index, struct qemu_plugin_tb *tb)
{
        size_t n = qemu_plugin_tb_n_insns(tb);
        size_t i;

        for (i = 0; i < n; i++) {
                struct qemu_plugin_insn *insn = qemu_plugin_tb_get_insn(tb, i);

                qemu_plugin_register_vcpu_mem_cb(insn, vcpu_mem, QEMU_PLUGIN_CB_NO_REGS, QEMU_PLUGIN_MEM_R);
        }

Instrumentation overhead

user-mode, x86_64-on-x86_64

Typical overhead
- Preemptive injection of instrumentation has negligible overhead

Direct callbacks
- Better than going via a helper (that iterates over a list) due to higher cache locality

All techniques put together

user-mode x86_64-on-x86_64. Baseline: QEMU v3.1.0

CactusADM: TLB resizing doesn't kick in often enough (we only do it on TLB flushes)

SoftMMU overhead

lower is better

CactusADM: TLB resizing doesn't kick in often enough (we only do it on TLB flushes)

SoftMMU using shadow page tables [^]

[^] Faravelon, Gruber, Pétrot. "Optimizing memory access performance using hardware assisted virtualization in retargetable dynamic binary translation. Euromicro Conference on Digital System Design (DSD), 2017.

[*] Belay, Bittau, Mashtizadeh, Terei, Mazieres, Kozyrakis. "Dune: Safe user-level access to privileged cpu features." OSDI, 2012

Before:
softMMU requires

many insns

after:
only 2 insns thanks to

shadow page tables

Advantages:

High performance (almost 0 overhead for MMU emulation)
Minimal modifications to QEMU compared to other options in the literature

Disadvantages:

Requires dune*, which means QEMU must be statically compiled
Cannot work when target address space => host address space

cross-ISA examples (1)

x86-on-ppc64, make -j N inside a VM

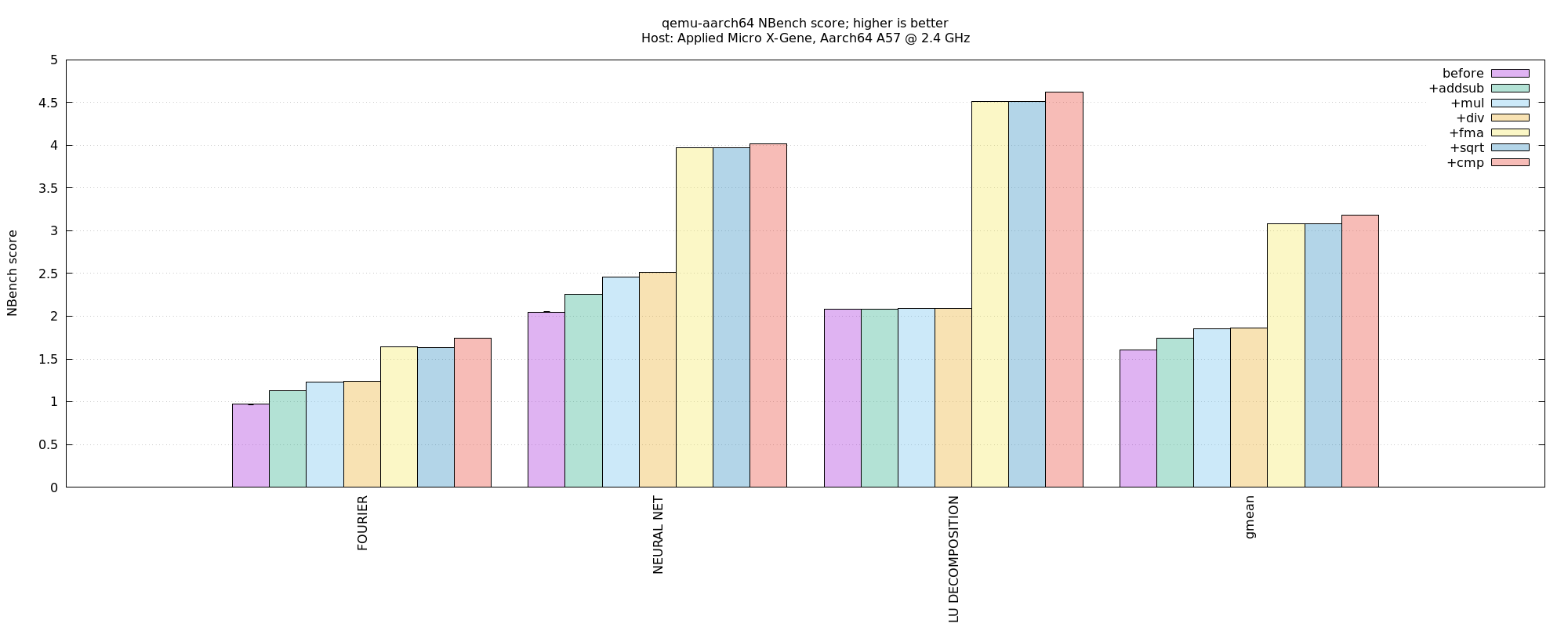

aarch64-on-aarch64, Nbench FP

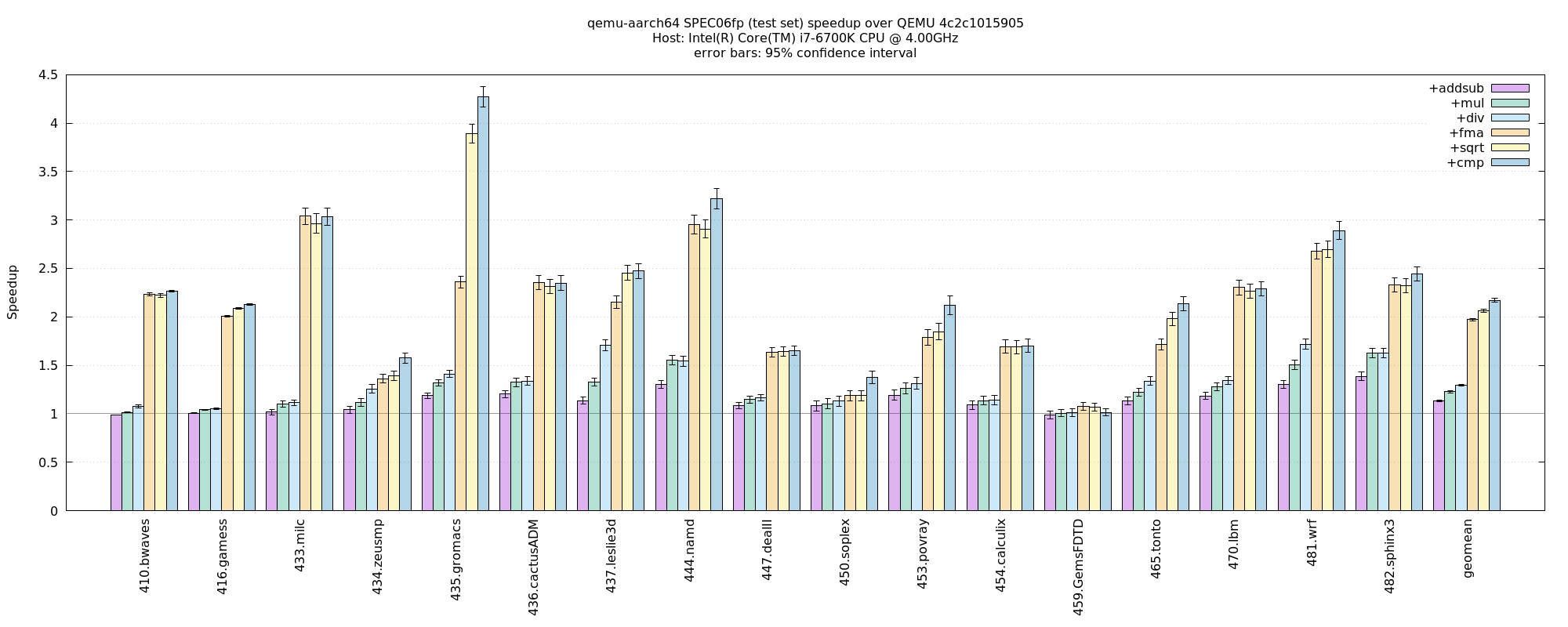

aarch64-on-x86, SPEC06fp

cross-ISA examples (2)

ind. branches, aarch64-on-x86

ind. branches, x86-on-aarch64

bench before after1 after2 after3 final_speedup
-------------------------------------------------------------------
aes 1.12s 1.12s 1.10s 1.00s 1.12
bigint 0.78s 0.78s 0.78s 0.78s 1
dhryst 0.96s 0.97s 0.49s 0.49s 1.9591837
miniz 1.94s 1.94s 1.88s 1.86s 1.0430108
norx 0.51s 0.51s 0.49s 0.48s 1.0625
primes 0.85s 0.85s 0.84s 0.84s 1.0119048
qsort 4.87s 4.88s 1.86s 1.86s 2.6182796
sha512 0.76s 0.77s 0.64s 0.64s 1.1875

bench before after1 after2 after3 final_speedup
---------------------------------------------------------------------
aes 2.68s 2.54s 2.60s 2.34s 1.1452991
bigint 1.61s 1.56s 1.55s 1.64s 0.98170732
dhryst 1.78s 1.67s 1.25s 1.24s 1.4354839
miniz 3.53s 3.35s 3.28s 3.35s 1.0537313
norx 1.13s 1.09s 1.07s 1.06s 1.0660377
primes 15.37s 15.41s 15.20s 15.37s 1
qsort 7.20s 6.71s 3.85s 3.96s 1.8181818
sha512 1.07s 1.04s 0.90s 0.90s 1.1888889

Ind. branches, RISC-V on x86, user-mode

Ind. branches, RISC-V on x86, full-system
