The Anatomy of a Large-Scale Hypertextual Web Search Engine
Sergey
Brin and Lawrence
Page
Computer Science Department,
Stanford University, Stanford, CA 94305,
USA
sergey@cs.stanford.edu
and page@cs.stanford.edu
- Abstract
- In this paper, we present Google, a prototype of a large-scale search
engine which makes heavy use of the structure present in hypertext. Google is
designed to crawl and index the Web efficiently and produce much more
satisfying search results than existing systems. The prototype with a full
text and hyperlink database of at least 24 million pages is available at http://google.stanford.edu/ To engineer
a search engine is a challenging task. Search engines index tens to hundreds
of millions of web pages involving a comparable number of distinct terms. They
answer tens of millions of queries every day. Despite the importance of
large-scale search engines on the web, very little academic research has been
done on them. Furthermore, due to rapid advance in technology and web
proliferation, creating a web search engine today is very different from three
years ago. This paper provides an in-depth description of our large-scale web
search engine -- the first such detailed public description we know of to
date. Apart from the problems of scaling traditional search techniques to data
of this magnitude, there are new technical challenges involved with using the
additional information present in hypertext to produce better search results.
This paper addresses this question of how to build a practical large-scale
system which can exploit the additional information present in hypertext. Also
we look at the problem of how to effectively deal with uncontrolled hypertext
collections where anyone can publish anything they want.
- Keywords
- World Wide Web, Search Engines, Information Retrieval, PageRank, Google
1. Introduction
(Note: There are two versions of this paper -- a
longer full version and a shorter printed version. The full version is available
on the web and the conference CD-ROM.)
The web creates new challenges
for information retrieval. The amount of information on the web is growing
rapidly, as well as the number of new users inexperienced in the art of web
research. People are likely to surf the web using its link graph, often starting
with high quality human maintained indices such as Yahoo! or with search engines. Human maintained
lists cover popular topics effectively but are subjective, expensive to build
and maintain, slow to improve, and cannot cover all esoteric topics. Automated
search engines that rely on keyword matching usually return too many low quality
matches. To make matters worse, some advertisers attempt to gain people's
attention by taking measures meant to mislead automated search engines. We have
built a large-scale search engine which addresses many of the problems of
existing systems. It makes especially heavy use of the additional structure
present in hypertext to provide much higher quality search results. We chose our
system name, Google, because it is a common spelling of googol, or
10100 and fits well with our goal of building very large-scale search
engines.
1.1 Web Search Engines -- Scaling Up: 1994 - 2000
Search engine
technology has had to scale dramatically to keep up with the growth of the web.
In 1994, one of the first web search engines, the World Wide Web Worm (WWWW) [McBryan 94]
had an index of 110,000 web pages and web accessible documents. As of
November, 1997, the top search engines claim to index from 2 million
(WebCrawler) to 100 million web documents (from Search Engine Watch). It is
foreseeable that by the year 2000, a comprehensive index of the Web will contain
over a billion documents. At the same time, the number of queries search engines
handle has grown incredibly too. In March and April 1994, the World Wide Web
Worm received an average of about 1500 queries per day. In November 1997,
Altavista claimed it handled roughly 20 million queries per day. With the
increasing number of users on the web, and automated systems which query search
engines, it is likely that top search engines will handle hundreds of millions
of queries per day by the year 2000. The goal of our system is to address many
of the problems, both in quality and scalability, introduced by scaling search
engine technology to such extraordinary numbers.
1.2. Google: Scaling with the Web
Creating a search engine which scales
even to today's web presents many challenges. Fast crawling technology is needed
to gather the web documents and keep them up to date. Storage space must be used
efficiently to store indices and, optionally, the documents themselves. The
indexing system must process hundreds of gigabytes of data efficiently. Queries
must be handled quickly, at a rate of hundreds to thousands per second.
These tasks are becoming increasingly difficult as the Web grows. However,
hardware performance and cost have improved dramatically to partially offset the
difficulty. There are, however, several notable exceptions to this progress such
as disk seek time and operating system robustness. In designing Google, we have
considered both the rate of growth of the Web and technological changes. Google
is designed to scale well to extremely large data sets. It makes efficient use
of storage space to store the index. Its data structures are optimized for fast
and efficient access (see section 4.2).
Further, we expect that the cost to index and store text or HTML will eventually
decline relative to the amount that will be available (see Appendix
B). This will result in favorable scaling properties for centralized systems
like Google.
1.3 Design Goals
1.3.1 Improved Search Quality
Our main goal is to improve the quality of
web search engines. In 1994, some people believed that a complete search index
would make it possible to find anything easily. According to Best of the Web 1994 --
Navigators, "The best navigation service should make it easy to find
almost anything on the Web (once all the data is entered)." However, the
Web of 1997 is quite different. Anyone who has used a search engine recently,
can readily testify that the completeness of the index is not the only factor in
the quality of search results. "Junk results" often wash out any results that a
user is interested in. In fact, as of November 1997, only one of the top four
commercial search engines finds itself (returns its own search page in response
to its name in the top ten results). One of the main causes of this problem is
that the number of documents in the indices has been increasing by many orders
of magnitude, but the user's ability to look at documents has not. People are
still only willing to look at the first few tens of results. Because of this, as
the collection size grows, we need tools that have very high precision (number
of relevant documents returned, say in the top tens of results). Indeed, we want
our notion of "relevant" to only include the very best documents since there may
be tens of thousands of slightly relevant documents. This very high precision is
important even at the expense of recall (the total number of relevant documents
the system is able to return). There is quite a bit of recent optimism that the
use of more hypertextual information can help improve search and other
applications [Marchiori
97] [Spertus
97] [Weiss
96] [Kleinberg
98]. In particular, link structure [Page
98] and link text provide a lot of information for making relevance
judgments and quality filtering. Google makes use of both link structure and
anchor text (see Sections 2.1
and 2.2).
1.3.2 Academic Search Engine Research
Aside from tremendous growth, the
Web has also become increasingly commercial over time. In 1993, 1.5% of web
servers were on .com domains. This number grew to over 60% in 1997. At the same
time, search engines have migrated from the academic domain to the commercial.
Up until now most search engine development has gone on at companies with little
publication of technical details. This causes search engine technology to remain
largely a black art and to be advertising oriented (see Appendix
A). With Google, we have a strong goal to push more development and
understanding into the academic realm.
Another important design goal was to build systems that reasonable numbers of
people can actually use. Usage was important to us because we think some of the
most interesting research will involve leveraging the vast amount of usage data
that is available from modern web systems. For example, there are many tens of
millions of searches performed every day. However, it is very difficult to get
this data, mainly because it is considered commercially valuable.
Our final design goal was to build an architecture that can support novel
research activities on large-scale web data. To support novel research uses,
Google stores all of the actual documents it crawls in compressed form. One of
our main goals in designing Google was to set up an environment where other
researchers can come in quickly, process large chunks of the web, and produce
interesting results that would have been very difficult to produce otherwise. In
the short time the system has been up, there have already been several papers
using databases generated by Google, and many others are underway. Another goal
we have is to set up a Spacelab-like environment where researchers or even
students can propose and do interesting experiments on our large-scale web data.
2. System Features
The Google search engine has two important features
that help it produce high precision results. First, it makes use of the link
structure of the Web to calculate a quality ranking for each web page. This
ranking is called PageRank and is described in detail in [Page 98]. Second,
Google utilizes link to improve search results.
2.1 PageRank: Bringing Order to the Web
The citation
(link) graph of the web is an important resource that has largely gone unused in
existing web search engines. We have created maps containing as many as 518
million of these hyperlinks, a significant sample of the total. These maps allow
rapid calculation of a web page's "PageRank", an objective measure of its
citation importance that corresponds well with people's subjective idea of
importance. Because of this correspondence, PageRank is an excellent way to
prioritize the results of web keyword searches. For most popular subjects, a
simple text matching search that is restricted to web page titles performs
admirably when PageRank prioritizes the results (demo available at google.stanford.edu). For the type of
full text searches in the main Google system, PageRank also helps a great deal.
2.1.1 Description of PageRank Calculation
Academic citation literature
has been applied to the web, largely by counting citations or backlinks to a
given page. This gives some approximation of a page's importance or quality.
PageRank extends this idea by not counting links from all pages equally, and by
normalizing by the number of links on a page. PageRank is defined as follows:
We assume page A has pages T1...Tn which point to it (i.e., are
citations). The parameter d is a damping factor which can be set between 0 and
1. We usually set d to 0.85. There are more details about d in the next
section. Also C(A) is defined as the number of links going out of page A. The
PageRank of a page A is given as follows:
PR(A) = (1-d) + d (PR(T1)/C(T1) + ... + PR(Tn)/C(Tn))
Note that the PageRanks form a probability distribution over web pages,
so the sum of all web pages' PageRanks will be one.
PageRank
or PR(A) can be calculated using a simple iterative algorithm, and
corresponds to the principal eigenvector of the normalized link matrix of the
web. Also, a PageRank for 26 million web pages can be computed in a few hours on
a medium size workstation. There are many other details which are beyond the
scope of this paper.
2.1.2 Intuitive Justification
PageRank can be thought of as a model of
user behavior. We assume there is a "random surfer" who is given a web page at
random and keeps clicking on links, never hitting "back" but eventually gets
bored and starts on another random page. The probability that the random surfer
visits a page is its PageRank. And, the d damping factor is the
probability at each page the "random surfer" will get bored and request another
random page. One important variation is to only add the damping factor d
to a single page, or a group of pages. This allows for personalization and can
make it nearly impossible to deliberately mislead the system in order to get a
higher ranking. We have several other extensions to PageRank, again see [Page
98].
Another intuitive justification is that a page can have a high PageRank if
there are many pages that point to it, or if there are some pages that point to
it and have a high PageRank. Intuitively, pages that are well cited from many
places around the web are worth looking at. Also, pages that have perhaps only
one citation from something like the Yahoo!
homepage are also generally worth looking at. If a page was not high quality, or
was a broken link, it is quite likely that Yahoo's homepage would not link to
it. PageRank handles both these cases and everything in between by recursively
propagating weights through the link structure of the web.
2.2 Anchor Text
The text of links is treated in a
special way in our search engine. Most search engines associate the text of a
link with the page that the link is on. In addition, we associate it with the
page the link points to. This has several advantages. First, anchors often
provide more accurate descriptions of web pages than the pages themselves.
Second, anchors may exist for documents which cannot be indexed by a text-based
search engine, such as images, programs, and databases. This makes it possible
to return web pages which have not actually been crawled. Note that pages that
have not been crawled can cause problems, since they are never checked for
validity before being returned to the user. In this case, the search engine can
even return a page that never actually existed, but had hyperlinks pointing to
it. However, it is possible to sort the results, so that this particular problem
rarely happens.
This idea of propagating anchor text to the page it refers to was implemented
in the World Wide Web Worm [McBryan
94] especially because it helps search non-text information, and expands the
search coverage with fewer downloaded documents. We use anchor propagation
mostly because anchor text can help provide better quality results. Using anchor
text efficiently is technically difficult because of the large amounts of data
which must be processed. In our current crawl of 24 million pages, we had over
259 million anchors which we indexed.
2.3 Other Features
Aside from PageRank and the use of anchor text,
Google has several other features. First, it has location information for all
hits and so it makes extensive use of proximity in search. Second, Google keeps
track of some visual presentation details such as font size of words. Words in a
larger or bolder font are weighted higher than other words. Third, full raw HTML
of pages is available in a repository.
3 Related Work
Search research on the web has a short and concise
history. The World Wide Web Worm (WWWW) [McBryan 94]
was one of the first web search engines. It was subsequently followed by
several other academic search engines, many of which are now public companies.
Compared to the growth of the Web and the importance of search engines there are
precious few documents about recent search engines [Pinkerton 94]. According to
Michael Mauldin (chief scientist, Lycos Inc) [Mauldin],
"the various services (including Lycos) closely guard the details of these
databases". However, there has been a fair amount of work on specific features
of search engines. Especially well represented is work which can get results by
post-processing the results of existing commercial search engines, or produce
small scale "individualized" search engines. Finally, there has been a lot of
research on information retrieval systems, especially on well controlled
collections. In the next two sections, we discuss some areas where this research
needs to be extended to work better on the web.
3.1 Information Retrieval
Work in information retrieval systems goes
back many years and is well developed [Witten
94]. However, most of the research on information retrieval systems is on
small well controlled homogeneous collections such as collections of scientific
papers or news stories on a related topic. Indeed, the primary benchmark for
information retrieval, the Text Retrieval Conference [TREC
96], uses a fairly small, well controlled collection for their benchmarks.
The "Very Large Corpus" benchmark is only 20GB compared to the 147GB from our
crawl of 24 million web pages. Things that work well on TREC often do not
produce good results on the web. For example, the standard vector space model
tries to return the document that most closely approximates the query, given
that both query and document are vectors defined by their word occurrence. On
the web, this strategy often returns very short documents that are the query
plus a few words. For example, we have seen a major search engine return a page
containing only "Bill Clinton Sucks" and picture from a "Bill Clinton" query.
Some argue that on the web, users should specify more accurately what they want
and add more words to their query. We disagree vehemently with this position. If
a user issues a query like "Bill Clinton" they should get reasonable results
since there is a enormous amount of high quality information available on this
topic. Given examples like these, we believe that the standard information
retrieval work needs to be extended to deal effectively with the web.
3.2 Differences Between the Web and Well Controlled Collections
The web
is a vast collection of completely uncontrolled heterogeneous documents.
Documents on the web have extreme variation internal to the documents, and also
in the external meta information that might be available. For example, documents
differ internally in their language (both human and programming), vocabulary
(email addresses, links, zip codes, phone numbers, product numbers), type or
format (text, HTML, PDF, images, sounds), and may even be machine generated (log
files or output from a database). On the other hand, we define external meta
information as information that can be inferred about a document, but is not
contained within it. Examples of external meta information include things like
reputation of the source, update frequency, quality, popularity or usage, and
citations. Not only are the possible sources of external meta information
varied, but the things that are being measured vary many orders of magnitude as
well. For example, compare the usage information from a major homepage, like
Yahoo's which currently receives millions of page views every day with an
obscure historical article which might receive one view every ten years.
Clearly, these two items must be treated very differently by a search engine.
Another big difference between the web and traditional well controlled
collections is that there is virtually no control over what people can put on
the web. Couple this flexibility to publish anything with the enormous influence
of search engines to route traffic and companies which deliberately manipulating
search engines for profit become a serious problem. This problem that has not
been addressed in traditional closed information retrieval systems. Also, it is
interesting to note that metadata efforts have largely failed with web search
engines, because any text on the page which is not directly represented to the
user is abused to manipulate search engines. There are even numerous companies
which specialize in manipulating search engines for profit.
4 System Anatomy
First, we will provide a high level discussion of the
architecture. Then, there is some in-depth descriptions of important data
structures. Finally, the major applications: crawling, indexing, and searching
will be examined in depth.

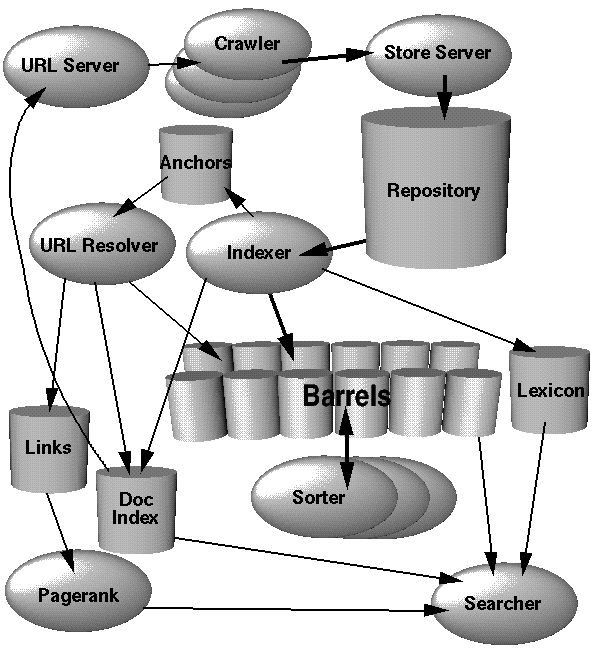

- Figure 1. High Level Google
Architecture
|
4.1 Google Architecture Overview
In this section, we will give a high
level overview of how the whole system works as pictured in Figure 1. Further
sections will discuss the applications and data structures not mentioned in this
section. Most of Google is implemented in C or C++ for efficiency and can run in
either Solaris or Linux.
In Google, the web crawling (downloading of web pages) is done by several
distributed crawlers. There is a URLserver that sends lists of URLs to be
fetched to the crawlers. The web pages that are fetched are then sent to the
storeserver. The storeserver then compresses and stores the web pages into a
repository. Every web page has an associated ID number called a docID which is
assigned whenever a new URL is parsed out of a web page. The indexing function
is performed by the indexer and the sorter. The indexer performs a number of
functions. It reads the repository, uncompresses the documents, and parses them.
Each document is converted into a set of word occurrences called hits. The hits
record the word, position in document, an approximation of font size, and

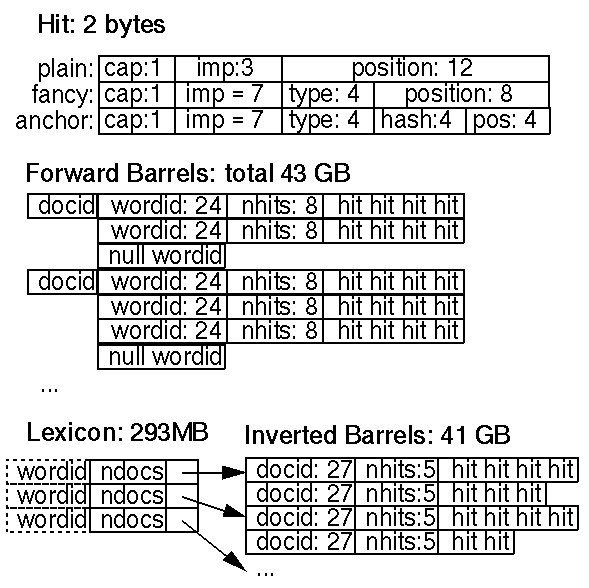

capitalization. The indexer distributes these hits into a set of "barrels",
creating a partially sorted forward index. The indexer performs another
important function. It parses out all the links in every web page and stores
important information about them in an anchors file. This file contains enough
information to determine where each link points from and to, and the text of the
link.
The URLresolver reads the anchors file and converts relative URLs into
absolute URLs and in turn into docIDs. It puts the anchor text into the forward
index, associated with the docID that the anchor points to. It also generates a
database of links which are pairs of docIDs. The links database is used to
compute PageRanks for all the documents.
The sorter takes the barrels, which are sorted by docID (this is a
simplification, see Section
4.2.5), and resorts them by wordID to generate the inverted index. This is
done in place so that little temporary space is needed for this operation. The
sorter also produces a list of wordIDs and offsets into the inverted index. A
program called DumpLexicon takes this list together with the lexicon produced by
the indexer and generates a new lexicon to be used by the searcher. The searcher
is run by a web server and uses the lexicon built by DumpLexicon together with
the inverted index and the PageRanks to answer queries.
4.2 Major Data Structures
Google's data structures are
optimized so that a large document collection can be crawled, indexed, and
searched with little cost. Although, CPUs and bulk input output rates have
improved dramatically over the years, a disk seek still requires about 10 ms to
complete. Google is designed to avoid disk seeks whenever possible, and this has
had a considerable influence on the design of the data structures.
4.2.1 BigFiles
BigFiles are virtual files spanning multiple file systems
and are addressable by 64 bit integers. The allocation among multiple file
systems is handled automatically. The BigFiles package also handles allocation
and deallocation of file descriptors, since the operating systems do not provide
enough for our needs. BigFiles also support rudimentary compression options.
4.2.2 Repository

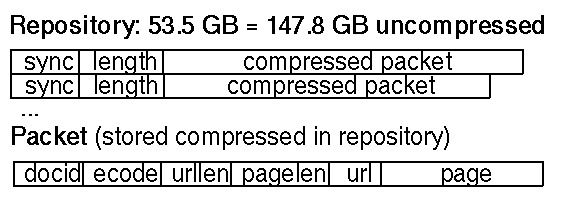

- Figure 2. Repository Data
Structure
|
The repository
contains the full HTML of every web page. Each page is compressed using zlib
(see RFC1950).
The choice of compression technique is a tradeoff between speed and compression
ratio. We chose zlib's speed over a significant improvement in compression
offered by bzip. The compression
rate of bzip was approximately 4 to 1 on the repository as compared to zlib's 3
to 1 compression. In the repository, the documents are stored one after the
other and are prefixed by docID, length, and URL as can be seen in Figure 2. The
repository requires no other data structures to be used in order to access it.
This helps with data consistency and makes development much easier; we can
rebuild all the other data structures from only the repository and a file which
lists crawler errors.
4.2.3 Document Index
The document index keeps information about each
document. It is a fixed width ISAM (Index sequential access mode) index, ordered
by docID. The information stored in each entry includes the current document
status, a pointer into the repository, a document checksum, and various
statistics. If the document has been crawled, it also contains a pointer into a
variable width file called docinfo which contains its URL and title. Otherwise
the pointer points into the URLlist which contains just the URL. This design
decision was driven by the desire to have a reasonably compact data structure,
and the ability to fetch a record in one disk seek during a search
Additionally, there is a file which is used to convert URLs into docIDs. It
is a list of URL checksums with their corresponding docIDs and is sorted by
checksum. In order to find the docID of a particular URL, the URL's checksum is
computed and a binary search is performed on the checksums file to find its
docID. URLs may be converted into docIDs in batch by doing a merge with this
file. This is the technique the URLresolver uses to turn URLs into docIDs. This
batch mode of update is crucial because otherwise we must perform one seek for
every link which assuming one disk would take more than a month for our 322
million link dataset.
4.2.4 Lexicon
The lexicon has several different forms. One important
change from earlier systems is that the lexicon can fit in memory for a
reasonable price. In the current implementation we can keep the lexicon in
memory on a machine with 256 MB of main memory. The current lexicon contains 14
million words (though some rare words were not added to the lexicon). It is
implemented in two parts -- a list of the words (concatenated together but
separated by nulls) and a hash table of pointers. For various functions, the
list of words has some auxiliary information which is beyond the scope of this
paper to explain fully.
4.2.5 Hit Lists
A hit list corresponds to a list of
occurrences of a particular word in a particular document including position,
font, and capitalization information. Hit lists account for most of the space
used in both the forward and the inverted indices. Because of this, it is
important to represent them as efficiently as possible. We considered several
alternatives for encoding position, font, and capitalization -- simple encoding
(a triple of integers), a compact encoding (a hand optimized allocation of
bits), and Huffman coding. In the end we chose a hand optimized compact encoding
since it required far less space than the simple encoding and far less bit
manipulation than Huffman coding. The details of the hits are shown in Figure 3.
Our compact encoding uses two bytes for every hit. There are two types of
hits: fancy hits and plain hits. Fancy hits include hits occurring in a URL,
title, anchor text, or meta tag. Plain hits include everything else. A plain hit
consists of a capitalization bit, font size, and 12 bits of word position in a
document (all positions higher than 4095 are labeled 4096). Font size is
represented relative to the rest of the document using three bits (only 7 values
are actually used because 111 is the flag that signals a fancy hit). A fancy hit
consists of a capitalization bit, the font size set to 7 to indicate it is a
fancy hit, 4 bits to encode the type of fancy hit, and 8 bits of position. For
anchor hits, the 8 bits of position are split into 4 bits for position in anchor
and 4 bits for a hash of the docID the anchor occurs in. This gives us some
limited phrase searching as long as there are not that many anchors for a
particular word. We expect to update the way that anchor hits are stored to
allow for greater resolution in the position and docIDhash fields. We use font
size relative to the rest of the document because when searching, you do not
want to rank otherwise identical documents differently just because one of the
documents is in a larger font.
- Figure 3. Forward and Reverse Indexes and the
Lexicon
|
The length of a hit list is stored before the hits themselves. To save space,
the length of the hit list is combined with the wordID in the forward index and
the docID in the inverted index. This limits it to 8 and 5 bits respectively
(there are some tricks which allow 8 bits to be borrowed from the wordID). If
the length is longer than would fit in that many bits, an escape code is used in
those bits, and the next two bytes contain the actual length.
4.2.6 Forward Index
The forward index is actually already partially
sorted. It is stored in a number of barrels (we used 64). Each barrel holds a
range of wordID's. If a document contains words that fall into a particular
barrel, the docID is recorded into the barrel, followed by a list of wordID's
with hitlists which correspond to those words. This scheme requires slightly
more storage because of duplicated docIDs but the difference is very small for a
reasonable number of buckets and saves considerable time and coding complexity
in the final indexing phase done by the sorter. Furthermore, instead of storing
actual wordID's, we store each wordID as a relative difference from the minimum
wordID that falls into the barrel the wordID is in. This way, we can use just 24
bits for the wordID's in the unsorted barrels, leaving 8 bits for the hit list
length.
4.2.7 Inverted Index
The inverted index consists of the same barrels as
the forward index, except that they have been processed by the sorter. For every
valid wordID, the lexicon contains a pointer into the barrel that wordID falls
into. It points to a doclist of docID's together with their corresponding hit
lists. This doclist represents all the occurrences of that word in all
documents.
An important issue is in what order the docID's should appear in the doclist.
One simple solution is to store them sorted by docID. This allows for quick
merging of different doclists for multiple word queries. Another option is to
store them sorted by a ranking of the occurrence of the word in each document.
This makes answering one word queries trivial and makes it likely that the
answers to multiple word queries are near the start. However, merging is much
more difficult. Also, this makes development much more difficult in that a
change to the ranking function requires a rebuild of the index. We chose a
compromise between these options, keeping two sets of inverted barrels -- one
set for hit lists which include title or anchor hits and another set for all hit
lists. This way, we check the first set of barrels first and if there are not
enough matches within those barrels we check the larger ones.
4.3 Crawling the Web
Running a web crawler is a challenging task. There
are tricky performance and reliability issues and even more importantly, there
are social issues. Crawling is the most fragile application since it involves
interacting with hundreds of thousands of web servers and various name servers
which are all beyond the control of the system.
In order to scale to hundreds of millions of web pages, Google has a fast
distributed crawling system. A single URLserver serves lists of URLs to a number
of crawlers (we typically ran about 3). Both the URLserver and the crawlers are
implemented in Python. Each crawler keeps roughly 300 connections open at once.
This is necessary to retrieve web pages at a fast enough pace. At peak speeds,
the system can crawl over 100 web pages per second using four crawlers. This
amounts to roughly 600K per second of data. A major performance stress is DNS
lookup. Each crawler maintains a its own DNS cache so it does not need to do a
DNS lookup before crawling each document. Each of the hundreds of connections
can be in a number of different states: looking up DNS, connecting to host,
sending request, and receiving response. These factors make the crawler a
complex component of the system. It uses asynchronous IO to manage events, and a
number of queues to move page fetches from state to state.
It turns out that running a crawler which connects to more than half a
million servers, and generates tens of millions of log entries generates a fair
amount of email and phone calls. Because of the vast number of people coming on
line, there are always those who do not know what a crawler is, because this is
the first one they have seen. Almost daily, we receive an email something like,
"Wow, you looked at a lot of pages from my web site. How did you like it?" There
are also some people who do not know about the robots
exclusion protocol, and think their page should be protected from indexing
by a statement like, "This page is copyrighted and should not be indexed", which
needless to say is difficult for web crawlers to understand. Also, because of
the huge amount of data involved, unexpected things will happen. For example,
our system tried to crawl an online game. This resulted in lots of garbage
messages in the middle of their game! It turns out this was an easy problem to
fix. But this problem had not come up until we had downloaded tens of millions
of pages. Because of the immense variation in web pages and servers, it is
virtually impossible to test a crawler without running it on large part of the
Internet. Invariably, there are hundreds of obscure problems which may only
occur on one page out of the whole web and cause the crawler to crash, or worse,
cause unpredictable or incorrect behavior. Systems which access large parts of
the Internet need to be designed to be very robust and carefully tested. Since
large complex systems such as crawlers will invariably cause problems, there
needs to be significant resources devoted to reading the email and solving these
problems as they come up.
4.4 Indexing the Web
- Parsing -- Any parser which is designed to run on the entire Web
must handle a huge array of possible errors. These range from typos in HTML
tags to kilobytes of zeros in the middle of a tag, non-ASCII characters, HTML
tags nested hundreds deep, and a great variety of other errors that challenge
anyone's imagination to come up with equally creative ones. For maximum speed,
instead of using YACC to generate a CFG parser, we use flex to generate a
lexical analyzer which we outfit with its own stack. Developing this parser
which runs at a reasonable speed and is very robust involved a fair amount of
work.
- Indexing Documents into Barrels -- After each document is
parsed, it is encoded into a number of barrels. Every word is converted into a
wordID by using an in-memory hash table -- the lexicon. New additions to the
lexicon hash table are logged to a file. Once the words are converted into
wordID's, their occurrences in the current document are translated into hit
lists and are written into the forward barrels. The main difficulty with
parallelization of the indexing phase is that the lexicon needs to be shared.
Instead of sharing the lexicon, we took the approach of writing a log of all
the extra words that were not in a base lexicon, which we fixed at 14 million
words. That way multiple indexers can run in parallel and then the small log
file of extra words can be processed by one final indexer.
- Sorting -- In order to generate the inverted index, the sorter
takes each of the forward barrels and sorts it by wordID to produce an
inverted barrel for title and anchor hits and a full text inverted barrel.
This process happens one barrel at a time, thus requiring little temporary
storage. Also, we parallelize the sorting phase to use as many machines as we
have simply by running multiple sorters, which can process different buckets
at the same time. Since the barrels don't fit into main memory, the sorter
further subdivides them into baskets which do fit into memory based on wordID
and docID. Then the sorter, loads each basket into memory, sorts it and writes
its contents into the short inverted barrel and the full inverted barrel.
4.5 Searching
The goal of searching is to provide quality search results
efficiently. Many of the large commercial search engines seemed to have made
great progress in terms of efficiency. Therefore, we have focused more on
quality of search in our research, although we believe our solutions are
scalable to commercial volumes with a bit more effort. The google query
evaluation process is show in Figure 4.
- Parse the query.
- Convert words into wordIDs.
- Seek to the start of the doclist in the short barrel for every word.
- Scan through the doclists until there is a document that matches all
the search terms.
- Compute the rank of that document for the query.
- If we are in the short barrels and at the end of any doclist, seek
to the start of the doclist in the full barrel for every word and go to
step 4.
- If we are not at the end of any doclist go to step 4.
Sort the
documents that have matched by rank and return the top k.
- Figure 4. Google Query
Evaluation
|
To put a limit on response time, once a certain number (currently 40,000) of
matching documents are found, the searcher automatically goes to step 8 in
Figure 4. This means that it is possible that sub-optimal results would be
returned. We are currently investigating other ways to solve this problem. In
the past, we sorted the hits according to PageRank, which seemed to improve the
situation.
4.5.1 The Ranking System
Google maintains much more information about
web documents than typical search engines. Every hitlist includes position,
font, and capitalization information. Additionally, we factor in hits from
anchor text and the PageRank of the document. Combining all of this information
into a rank is difficult. We designed our ranking function so that no particular
factor can have too much influence. First, consider the simplest case -- a
single word query. In order to rank a document with a single word query, Google
looks at that document's hit list for that word. Google considers each hit to be
one of several different types (title, anchor, URL, plain text large font, plain
text small font, ...), each of which has its own type-weight. The type-weights
make up a vector indexed by type. Google counts the number of hits of each type
in the hit list. Then every count is converted into a count-weight.
Count-weights increase linearly with counts at first but quickly taper off so
that more than a certain count will not help. We take the dot product of the
vector of count-weights with the vector of type-weights to compute an IR score
for the document. Finally, the IR score is combined with PageRank to give a
final rank to the document.
For a multi-word search, the situation is more complicated. Now multiple hit
lists must be scanned through at once so that hits occurring close together in a
document are weighted higher than hits occurring far apart. The hits from the
multiple hit lists are matched up so that nearby hits are matched together. For
every matched set of hits, a proximity is computed. The proximity is based on
how far apart the hits are in the document (or anchor) but is classified into 10
different value "bins" ranging from a phrase match to "not even close". Counts
are computed not only for every type of hit but for every type and proximity.
Every type and proximity pair has a type-prox-weight. The counts are converted
into count-weights and we take the dot product of the count-weights and the
type-prox-weights to compute an IR score. All of these numbers and matrices can
all be displayed with the search results using a special debug mode. These
displays have been very helpful in developing the ranking system.
4.5.2 Feedback
The ranking function has many parameters like the
type-weights and the type-prox-weights. Figuring out the right values for these
parameters is something of a black art. In order to do this, we have a user
feedback mechanism in the search engine. A trusted user may optionally evaluate
all of the results that are returned. This feedback is saved. Then when we
modify the ranking function, we can see the impact of this change on all
previous searches which were ranked. Although far from perfect, this gives us
some idea of how a change in the ranking function affects the search results.
5 Results and Performance
The most important
measure of a search engine is the quality of its search results. While a
complete user evaluation is beyond the scope of this paper, our own experience
with Google has shown it to produce better results than the major commercial
search engines for most searches. As an example which illustrates the use of
PageRank, anchor text, and proximity, Figure 4 shows Google's results for a
search on "bill clinton". These results demonstrates some of Google's features.
The results are clustered by server. This helps considerably when sifting
through result sets. A number of results are from the whitehouse.gov domain
which is what one may reasonably expect from such a search. Currently, most
major commercial search engines do not return any results from whitehouse.gov,
much less the right ones. Notice that there is no title for the first result.
This is because it was not crawled. Instead, Google relied on anchor text to
determine this was a good answer to the query. Similarly, the fifth result is an
email address which, of course, is not crawlable. It is also a result of anchor
text.
All of the results are reasonably high quality pages and, at last check, none
were broken links. This is largely because they all have high PageRank. The
PageRanks are the percentages in red along with bar graphs. Finally, there are
no results about a Bill other than Clinton or about a Clinton other than Bill.
This is because we place heavy importance on the proximity of word occurrences.
Of course a true test of the quality of a search engine would involve an
extensive user study or results analysis which we do not have room for here.
Instead, we invite the reader to try Google for themselves at http://google.stanford.edu/.
5.1 Storage Requirements
Aside from search quality, Google is designed
to scale cost effectively to the size of the Web as it grows. One aspect of this
is to use storage efficiently. Table 1 has a breakdown of some statistics and
storage requirements of Google. Due to compression the total size of the
repository is about 53 GB, just over one third of the total data it stores. At
current disk prices this makes the repository a relatively cheap source of
useful data. More importantly, the total of all the data used by the search
engine requires a comparable amount of storage, about 55 GB. Furthermore, most
queries can be answered using just the short inverted index. With better
encoding and compression of the Document Index, a high quality web search engine
may fit onto a 7GB drive of a new PC.
Storage Statistics |
Total Size of Fetched Pages |
147.8 GB |
Compressed Repository |
53.5 GB |
Short Inverted Index |
4.1 GB |
Full Inverted Index |
37.2 GB |
Lexicon |
293 MB |
Temporary Anchor Data (not in total) |
6.6 GB |
Document Index Incl. Variable Width Data |
9.7 GB |
Links Database |
3.9 GB |
Total Without Repository |
55.2 GB |
Total With Repository |
108.7 GB |
|
Web Page Statistics |
Number of Web Pages Fetched |
24 million |
Number of Urls Seen |
76.5 million |
Number of Email Addresses |
1.7 million |
Number of 404's |
1.6 million | |
Table 1. Statistics |
5.2 System Performance
It is important for a search engine to
crawl and index efficiently. This way information can be kept up to date and
major changes to the system can be tested relatively quickly. For Google, the
major operations are Crawling, Indexing, and Sorting. It is difficult to measure
how long crawling took overall because disks filled up, name servers crashed, or
any number of other problems which stopped the system. In total it took roughly
9 days to download the 26 million pages (including errors). However, once the
system was running smoothly, it ran much faster, downloading the last 11 million
pages in just 63 hours, averaging just over 4 million pages per day or 48.5
pages per second. We ran the indexer and the crawler simultaneously. The indexer
ran just faster than the crawlers. This is largely because we spent just enough
time optimizing the indexer so that it would not be a bottleneck. These
optimizations included bulk updates to the document index and placement of
critical data structures on the local disk. The indexer runs at roughly 54 pages
per second. The sorters can be run completely in parallel; using four machines,
the whole process of sorting takes about 24 hours.
5.3 Search Performance
Improving the performance of search was not the
major focus of our research up to this point. The current version of Google
answers most queries in between 1 and 10 seconds. This time is mostly dominated
by disk IO over NFS (since disks are spread over a number of machines).
Furthermore, Google does not have any optimizations such as query caching,
subindices on common terms, and other common optimizations. We intend to speed
up Google considerably through distribution and hardware, software, and
algorithmic improvements. Our target is to be able to handle several hundred
queries per second. Table 2 has some sample query times from the current version
of Google. They are repeated to show the speedups resulting from cached IO.
|
Initial Query |
Same Query Repeated (IO mostly
cached) |
Query |
CPU Time(s) |
Total Time(s) |
CPU Time(s) |
Total Time(s) |
al gore |
0.09 |
2.13 |
0.06 |
0.06 |
vice president |
1.77 |
3.84 |
1.66 |
1.80 |
hard disks |
0.25 |
4.86 |
0.20 |
0.24 |
search engines |
1.31 |
9.63 |
1.16 |
1.16 | |
Table 2. Search
Times |
6 Conclusions
Google is designed to be a scalable search engine. The
primary goal is to provide high quality search results over a rapidly growing
World Wide Web. Google employs a number of techniques to improve search quality
including page rank, anchor text, and proximity information. Furthermore, Google
is a complete architecture for gathering web pages, indexing them, and
performing search queries over them.
6.1 Future Work
A large-scale web search engine is a complex system and
much remains to be done. Our immediate goals are to improve search efficiency
and to scale to approximately 100 million web pages. Some simple improvements to
efficiency include query caching, smart disk allocation, and subindices. Another
area which requires much research is updates. We must have smart algorithms to
decide what old web pages should be recrawled and what new ones should be
crawled. Work toward this goal has been done in [Cho
98]. One promising area of research is using proxy caches to build search
databases, since they are demand driven. We are planning to add simple features
supported by commercial search engines like boolean operators, negation, and
stemming. However, other features are just starting to be explored such as
relevance feedback and clustering (Google currently supports a simple hostname
based clustering). We also plan to support user context (like the user's
location), and result summarization. We are also working to extend the use of
link structure and link text. Simple experiments indicate PageRank can be
personalized by increasing the weight of a user's home page or bookmarks. As for
link text, we are experimenting with using text surrounding links in addition to
the link text itself. A Web search engine is a very rich environment for
research ideas. We have far too many to list here so we do not expect this
Future Work section to become much shorter in the near future.
6.2 High Quality Search
The biggest problem facing users of web search
engines today is the quality of the results they get back. While the results are
often amusing and expand users' horizons, they are often frustrating and consume
precious time. For example, the top result for a search for "Bill Clinton" on
one of the most popular commercial search engines was the Bill Clinton Joke of the
Day: April 14, 1997. Google is designed to provide higher quality search so
as the Web continues to grow rapidly, information can be found easily. In order
to accomplish this Google makes heavy use of hypertextual information consisting
of link structure and link (anchor) text. Google also uses proximity and font
information. While evaluation of a search engine is difficult, we have
subjectively found that Google returns higher quality search results than
current commercial search engines. The analysis of link structure via PageRank
allows Google to evaluate the quality of web pages. The use of link text as a
description of what the link points to helps the search engine return relevant
(and to some degree high quality) results. Finally, the use of proximity
information helps increase relevance a great deal for many queries.
6.3 Scalable Architecture
Aside from the quality of search, Google is
designed to scale. It must be efficient in both space and time, and constant
factors are very important when dealing with the entire Web. In implementing
Google, we have seen bottlenecks in CPU, memory access, memory capacity, disk
seeks, disk throughput, disk capacity, and network IO. Google has evolved to
overcome a number of these bottlenecks during various operations. Google's major
data structures make efficient use of available storage space. Furthermore, the
crawling, indexing, and sorting operations are efficient enough to be able to
build an index of a substantial portion of the web -- 24 million pages, in less
than one week. We expect to be able to build an index of 100 million pages in
less than a month.
6.4 A Research Tool
In addition to being a high quality search engine,
Google is a research tool. The data Google has collected has already resulted in
many other papers submitted to conferences and many more on the way. Recent
research such as [Abiteboul
97] has shown a number of limitations to queries about the Web that may be
answered without having the Web available locally. This means that Google (or a
similar system) is not only a valuable research tool but a necessary one for a
wide range of applications. We hope Google will be a resource for searchers and
researchers all around the world and will spark the next generation of search
engine technology.
7 Acknowledgments
Scott Hassan and Alan Steremberg have been critical to
the development of Google. Their talented contributions are irreplaceable, and
the authors owe them much gratitude. We would also like to thank Hector
Garcia-Molina, Rajeev Motwani, Jeff Ullman, and Terry Winograd and the whole
WebBase group for their support and insightful discussions. Finally we would
like to recognize the generous support of our equipment donors IBM, Intel, and
Sun and our funders. The research described here was conducted as part of the
Stanford Integrated Digital Library Project, supported by the National Science
Foundation under Cooperative Agreement IRI-9411306. Funding for this cooperative
agreement is also provided by DARPA and NASA, and by Interval Research, and the
industrial partners of the Stanford Digital Libraries Project.
References
- [Abiteboul 97] Serge Abiteboul and Victor Vianu, Queries and
Computation on the Web. Proceedings of the International Conference on
Database Theory. Delphi, Greece 1997.
- [Bagdikian 97] Ben H. Bagdikian. The Media Monopoly. 5th Edition.
Publisher: Beacon, ISBN: 0807061557
- [Cho 98] Junghoo Cho, Hector Garcia-Molina, Lawrence Page. Efficient
Crawling Through URL Ordering. Seventh International Web Conference (WWW
98). Brisbane, Australia, April 14-18, 1998.
- [Gravano 94] Luis Gravano, Hector Garcia-Molina, and A. Tomasic. The
Effectiveness of GlOSS for the Text-Database Discovery Problem. Proc. of
the 1994 ACM SIGMOD International Conference On Management Of Data, 1994.
- [Kleinberg 98] Jon Kleinberg, Authoritative Sources in a Hyperlinked
Environment, Proc. ACM-SIAM Symposium on Discrete Algorithms, 1998.
- [Marchiori 97] Massimo Marchiori. The Quest for Correct Information on
the Web: Hyper Search Engines. The Sixth International WWW Conference (WWW
97). Santa Clara, USA, April 7-11, 1997.
- [McBryan 94] Oliver A. McBryan. GENVL and WWWW: Tools for Taming the
Web. First International Conference on the World Wide Web. CERN, Geneva
(Switzerland), May 25-26-27 1994. http://www.cs.colorado.edu/home/mcbryan/mypapers/www94.ps
- [Page 98] Lawrence Page, Sergey Brin, Rajeev Motwani, Terry Winograd.
The PageRank Citation Ranking: Bringing Order to the Web. Manuscript in
progress. http://google.stanford.edu/~backrub/pageranksub.ps
- [Pinkerton 94] Brian Pinkerton, Finding What People Want: Experiences
with the WebCrawler. The Second International WWW Conference Chicago, USA,
October 17-20, 1994. http://info.webcrawler.com/bp/WWW94.html
- [Spertus 97] Ellen Spertus. ParaSite: Mining Structural Information on
the Web. The Sixth International WWW Conference (WWW 97). Santa Clara,
USA, April 7-11, 1997.
- [TREC 96] Proceedings of the fifth Text REtrieval Conference (TREC-5).
Gaithersburg, Maryland, November 20-22, 1996. Publisher: Department of
Commerce, National Institute of Standards and Technology. Editors: D. K.
Harman and E. M. Voorhees. Full text at: http://trec.nist.gov/
- [Witten 94] Ian H Witten, Alistair Moffat, and Timothy C. Bell.
Managing Gigabytes: Compressing and Indexing Documents and Images. New
York: Van Nostrand Reinhold, 1994.
- [Weiss 96] Ron Weiss, Bienvenido Velez, Mark A. Sheldon, Chanathip
Manprempre, Peter Szilagyi, Andrzej Duda, and David K. Gifford. HyPursuit:
A Hierarchical Network Search Engine that Exploits Content-Link Hypertext
Clustering. Proceedings of the 7th ACM Conference on Hypertext. New York,
1996.
Vitae
Sergey
Brin received his B.S. degree in mathematics and computer science from
the University of Maryland at College Park in 1993. Currently, he is a
Ph.D. candidate in computer science at Stanford University where he
received his M.S. in 1995. He is a recipient of a National Science
Foundation Graduate Fellowship. His research interests include search
engines, information extraction from unstructured sources, and data mining
of large text collections and scientific data. |
|
Lawrence
Page was born in East Lansing, Michigan, and received a B.S.E. in
Computer Engineering at the University of Michigan Ann Arbor in 1995. He
is currently a Ph.D. candidate in Computer Science at Stanford University.
Some of his research interests include the link structure of the web,
human computer interaction, search engines, scalability of information
access interfaces, and personal data mining. |
8 Appendix A: Advertising and Mixed Motives
Currently, the
predominant business model for commercial search engines is advertising. The
goals of the advertising business model do not always correspond to providing
quality search to users. For example, in our prototype search engine one of the
top results for cellular phone is "The Effect of Cellular
Phone Use Upon Driver Attention", a study which explains in great detail the
distractions and risk associated with conversing on a cell phone while driving.
This search result came up first because of its high importance as judged by the
PageRank algorithm, an approximation of citation importance on the web [Page,
98]. It is clear that a search engine which was taking money for showing
cellular phone ads would have difficulty justifying the page that our system
returned to its paying advertisers. For this type of reason and historical
experience with other media [Bagdikian
83], we expect that advertising funded search engines will be inherently
biased towards the advertisers and away from the needs of the consumers.
Since it is very difficult even for experts to evaluate search engines,
search engine bias is particularly insidious. A good example was OpenText, which
was reported to be selling companies the right to be listed at the top of the
search results for particular queries [Marchiori
97]. This type of bias is much more insidious than advertising, because it
is not clear who "deserves" to be there, and who is willing to pay money to be
listed. This business model resulted in an uproar, and OpenText has ceased to be
a viable search engine. But less blatant bias are likely to be tolerated by the
market. For example, a search engine could add a small factor to search results
from "friendly" companies, and subtract a factor from results from competitors.
This type of bias is very difficult to detect but could still have a significant
effect on the market. Furthermore, advertising income often provides an
incentive to provide poor quality search results. For example, we noticed a
major search engine would not return a large airline's homepage when the
airline's name was given as a query. It so happened that the airline had placed
an expensive ad, linked to the query that was its name. A better search engine
would not have required this ad, and possibly resulted in the loss of the
revenue from the airline to the search engine. In general, it could be argued
from the consumer point of view that the better the search engine is, the fewer
advertisements will be needed for the consumer to find what they want. This of
course erodes the advertising supported business model of the existing search
engines. However, there will always be money from advertisers who want a
customer to switch products, or have something that is genuinely new. But we
believe the issue of advertising causes enough mixed incentives that it is
crucial to have a competitive search engine that is transparent and in the
academic realm.
9 Appendix B: Scalability
9. 1 Scalability of Google
We have designed Google to be scalable in the
near term to a goal of 100 million web pages. We have just received disk and
machines to handle roughly that amount. All of the time consuming parts of the
system are parallelize and roughly linear time. These include things like the
crawlers, indexers, and sorters. We also think that most of the data structures
will deal gracefully with the expansion. However, at 100 million web pages we
will be very close up against all sorts of operating system limits in the common
operating systems (currently we run on both Solaris and Linux). These include
things like addressable memory, number of open file descriptors, network sockets
and bandwidth, and many others. We believe expanding to a lot more than 100
million pages would greatly increase the complexity of our system.
9.2 Scalability of Centralized Indexing Architectures
As the
capabilities of computers increase, it becomes possible to index a very large
amount of text for a reasonable cost. Of course, other more bandwidth intensive
media such as video is likely to become more pervasive. But, because the cost of
production of text is low compared to media like video, text is likely to remain
very pervasive. Also, it is likely that soon we will have speech recognition
that does a reasonable job converting speech into text, expanding the amount of
text available. All of this provides amazing possibilities for centralized
indexing. Here is an illustrative example. We assume we want to index everything
everyone in the US has written for a year. We assume that there are 250 million
people in the US and they write an average of 10k per day. That works out to be
about 850 terabytes. Also assume that indexing a terabyte can be done now for a
reasonable cost. We also assume that the indexing methods used over the text are
linear, or nearly linear in their complexity. Given all these assumptions we can
compute how long it would take before we could index our 850 terabytes for a
reasonable cost assuming certain growth factors. Moore's Law was defined in 1965
as a doubling every 18 months in processor power. It has held remarkably true,
not just for processors, but for other important system parameters such as disk
as well. If we assume that Moore's law holds for the future, we need only 10
more doublings, or 15 years to reach our goal of indexing everything everyone in
the US has written for a year for a price that a small company could afford. Of
course, hardware experts are somewhat concerned Moore's Law may not continue to
hold for the next 15 years, but there are certainly a lot of interesting
centralized applications even if we only get part of the way to our hypothetical
example.
Of course a distributed systems like Gloss [Gravano
94] or Harvest will often be the
most efficient and elegant technical solution for indexing, but it seems
difficult to convince the world to use these systems because of the high
administration costs of setting up large numbers of installations. Of course, it
is quite likely that reducing the administration cost drastically is possible.
If that happens, and everyone starts running a distributed indexing system,
searching would certainly improve drastically.
Because humans can only type or speak a finite amount, and as computers
continue improving, text indexing will scale even better than it does now. Of
course there could be an infinite amount of machine generated content, but just
indexing huge amounts of human generated content seems tremendously useful. So
we are optimistic that our centralized web search engine architecture will
improve in its ability to cover the pertinent text information over time and
that there is a bright future for search.
