Gallery of 3D Scanning Results
Here, we present 3D scanning results for a variety of scenes with interreflections, subsurface scattering and defocus. By clicking on each of the thumbnail images shown below, you can see the corresponding high resolution image.
(Back to Main Project Page)
Ceramic Bowl
Interreflections

.
Scene
The bowl is made of shiny material, resulting in strong interreflections inside the bowl.


.
Micro PS

.
Conventional PS

.
Modulated PS

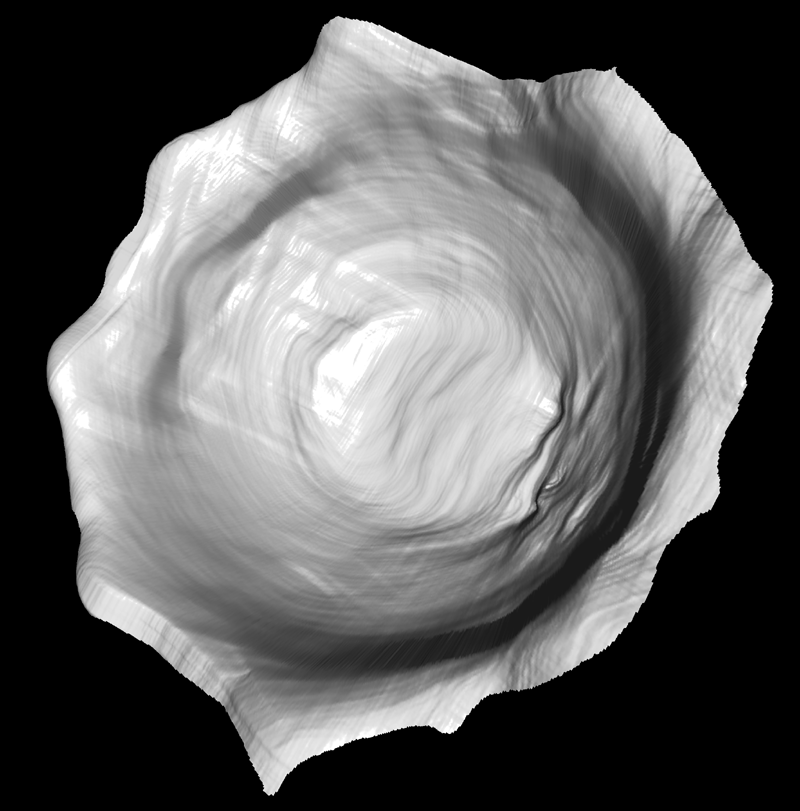

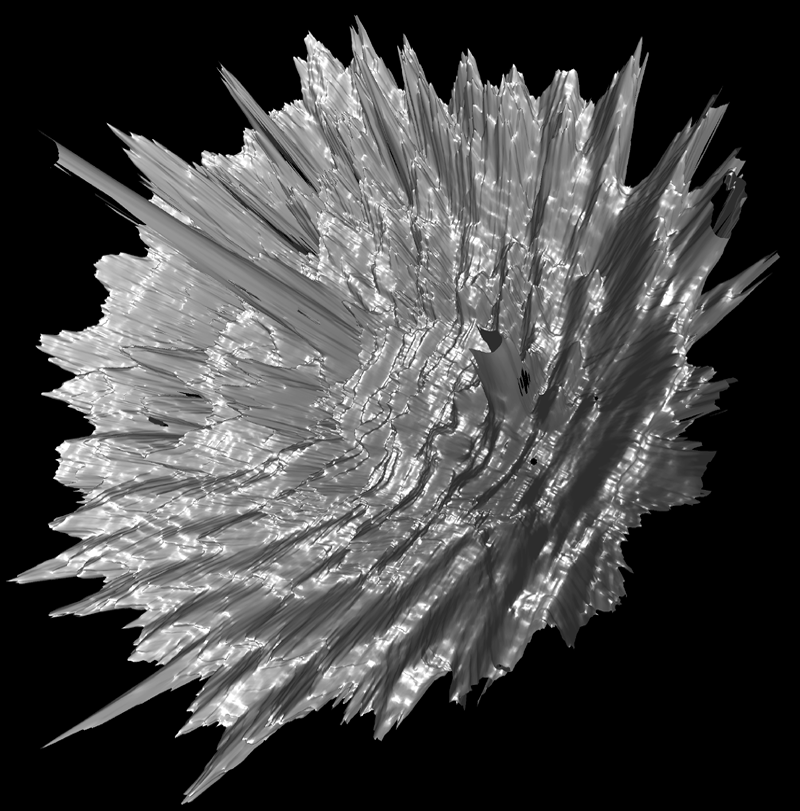

Reconstructed shapes using Micro, conventional and modulated phase shifting, respectively. 7 input images were used for all the techniques. Micro PS achieves a high quality reconstruction. In contrast, conventional PS results in systematic errors due to interreflections. Modulated PS explicitly separates the direct and global components of light transport, and thus suffers due to low SNR of the direct component.



Renderings (from different view-points) of the reconstruction achieved using Micro PS.

Lemon
Subsurface Scattering

.
Scene
Lemon skin is translucent, resulting in subsurface scattering.


.
Micro PS

.
Conventional PS

.
Modulated PS
Reconstructed shapes using Micro, conventional and modulated phase shifting, respectively. 7 input images were used for all the techniques. Both conventional and modulated PS suffer due to low SNR of the direct irradiance component. Modulated PS requires a large number of images per frequency. With a budget of 7 images, only the unit frequency can be acquired, which is not sufficient for accurate reconstruction. Moreover, the explicit separation of direct component from the captured images further enhances the noise. The problem is especially severe for translucent materials, for which the direct component is a small fraction of the total radiance.

Marble Statue
Subsurface Scattering

.
Scene
This scene consists of a translucent marble statue.


.
Micro PS

.
Conventional PS

.
Modulated PS
Click on each of the thumbnail images for high-resolution images. Both conventional and modulated PS produce noisy reconstructions. Reconstruction with Micro PS is of higher quality.

Russian Dolls
Illumination Defocus

.
Scene
This scene consists of a bunch of Russian dolls on a table. Because the depth of the scene is larger than the depth-of-field of the projector, parts of the scene receive defocused illumination.


.
Micro PS

.
Conventional PS

.
Modulated PS

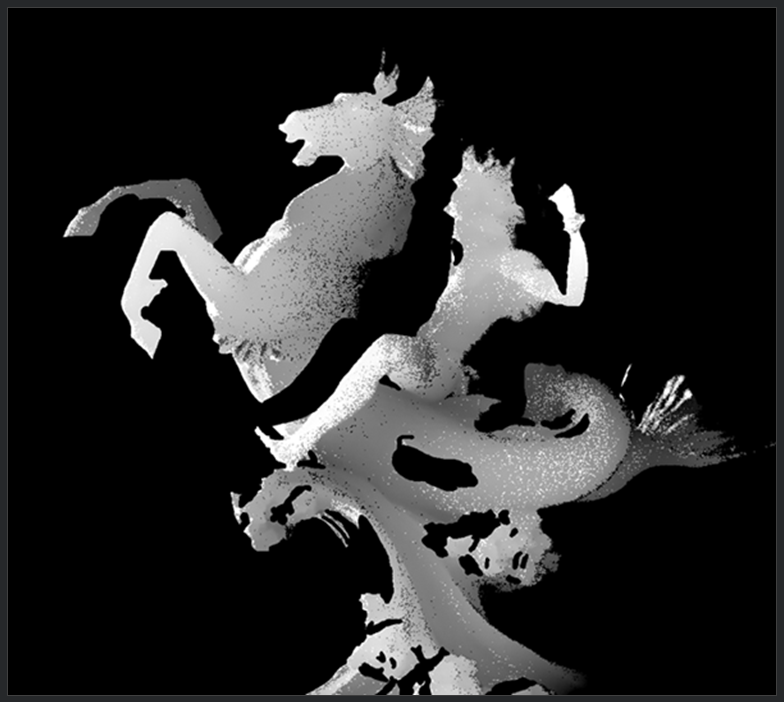

Reconstructed shapes using Micro, conventional and modulated phase shifting, respectively. 7 input images were used for all the techniques. Shapes reconstructed using conventional and modulated PS have holes in regions of low albedo. In contrast, reconstruction using Micro PS is more complete.

Wax Bowl
Interreflections + Subsurface Scattering

.
Scene
This object has both interreflections and subsurface scattering.


.
Micro PS

.
Conventional PS

.
Modulated PS
Reconstructed shapes using Micro, conventional and modulated phase shifting, respectively. 7 input images were used for all the techniques.



Renderings (from different view-points) of the reconstruction achieved using Micro PS.

Metal Bowl (failure case)
Specular Interreflections

.
Scene
This is a failure case. The bowl is made of specular metal, resulting in strong and high-frequency interreflections.


.
Micro PS

.
Conventional PS

.
Modulated PS

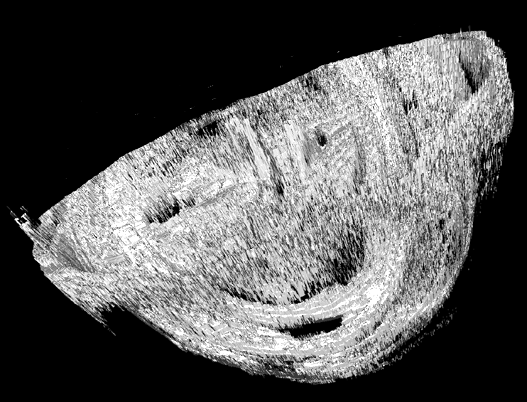

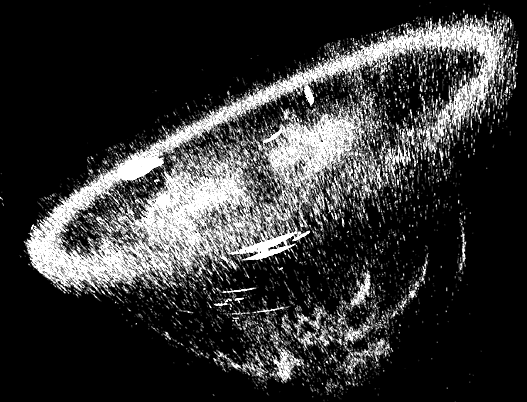

Due to high-frequency specular interreflections, reconstructed shapes using all the schemes have large holes and errors.
