This memorandum discusses the issues and options involved in the
design of a new transport protocol for multiplexed voice within
a single packet. The intended application is the interconnection
of devices which provide "trunking" or long distance
telephone service over the Internet. Such devices have many voice
connections simultaneously between them. Multiplexing them into
the same connection improves on the efficiency, enables the use
of low bitrate voice codecs, and improves scalability. Options
and issues concerning timestamping, payload type identification,
length indication, and channel identification are discussed. Several
possible header formats are identified, and their efficiencies
are compared.
This document is a product of the Audio-Video Transport working group within the Internet Engineering Task Force. Comments are solicited and should be addressed to the working group's mailing list at rem-conf@es.net and/or to the author(s).

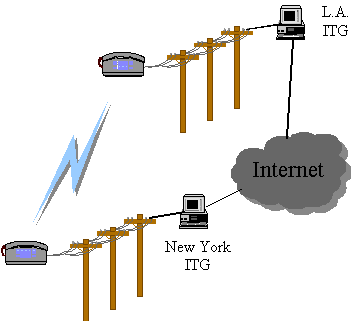

With the tremendous changes in the telecommunications industry,
and the recent growth of the Internet, there is a new opportunity
for offering long distance telephony over the Internet. Such a
service can be offered by allowing users to dial a local access
number, connecting them to a device called an Internet Telephony
Gateway (ITG). This device prompts the user for a destination
telephone number, and then routes the call over the Internet to
a similar device at the local exchange of the destination. There,
the call is completed when the destination ITG dials the end user.
The scenario is depicted in Figure 1.
In this application, the Internet is used only for the long distance
portion of the telephone call. Access to the service is still
via the traditional POTS. Current implementations of this service
are using H.323 to set up and tear down a new connection each
time a user establishes or terminates a call. However, H.323 is
the wrong protocol for many reasons. First, it is far too complex,
providing for capabilities and features which cannot be used because
both endpoints are analog telephones. Secondly, a significant
increase in efficiency (in excess of 30%), can be readily achieved
if all of the voice calls between two ITG are multiplexed into
a single packet, instead of using a separate connection (and thus
separate packets) for each. Such multiplexing reduces overhead
by increasing the effective payload without a corresponding
penalty in packetization delay. In fact, as more users are multiplexed,
the payload from a particular user can be reduced in size, or
the bitrate reduced, without an efficiency penalty. Furthermore,
multiplexing improves scalability. As the number of users increases,
the number of packets which arrive at the destination does not
increase. This means that computations which are per-packet (such
as RTCP statistics collecting, jitter accumulation, header processing,
etc.) do not increase. The end result is that multiplexing can
simultaneously improve efficiency, reduce delay, and improve scalability.
There are some minor side benefits in addition to these major
three. For example, in the aggregated scenario, when a particular
user enters a silence period, and stops sending data, the flow
of packets will not stop unless all of the other users are already
in silence (generally, an unlikely event). This means that packets
continually arrive, and that delay estimates obtained from those
packets can be continuously generated. Algorithms for dynamically
adapting the playout buffer at the receiver are based on these
delay estimates [], and can now be reworked to utilize the continuous
stream of delays, as opposed to relying on the delays received
during talkspurts only. The result is likely to be an improvement
in both end to end delay and loss performance.
In order to perform such multiplexing, a new Internet protocol
is required. This protocol must provide for the transport of multiple
real time streams within a single IP packet. Since the intended
application is real-time, the requirements for timing recovery,
sequencing, and payload identification are nearly identical to
normal single user voice. Since RTP was designed to meet these
requirements [], it makes sense to build this new multiplexing
protocol on top of RTP. In fact, RTP allows for different profiles
to be defined for a particular application. The goal of this document
is to define a variety of options for that new profile, and to
compare them.
It is important to note that this application is similar in its
requirements to [], which seeks to multiplex multiple encodings
for a particular user into the same IP packet.
User: One of the individuals who has data within the IP packet.
Connection: The point to point RTP session between two ITG's.
Channel: A "virtual connection" which is established by allowing a user to send data within a packet. There are many channels per connection - this represents the multiplexing.
Channel Identifier: A number which identifies a channel.
Block: The section of the payload of a packet which contains data for a particular user.
The transport protocol must provide, at a minimum, the following
functionality:
The following section identifies a number of issues which have an impact on the design of the protocol. It also identifies a variety of options for providing the specific services of the protocol.
There are four options for this problem. First, the telephone
number can be included in the per-user header. Second, the telephone
number can be signaled reliably by a companion TCP connection
before data begins. Thirdly, the phone number can be sent periodically
in RTCP in a soft-state fashion. Fourthly, the information can
be sent periodically over a reliable TCP based control channel.
The first approach avoids any synchronization problems, but has
high overhead. The second approach is a more traditional approach,
but relies on hard state at the destination ITG. The third approach
allows for a refresh of state, but causes longer setup delays
in the face of packet loss. The fourth approach guarantees reliable
delivery of signaling information, but also generates refreshes
to allow for recovery from end-system failures.
The most reasonable approach seems to be the second - the use
of TCP (or any other reliable protocol) for sending signaling
information. This approach guarantees that the critical information
is received correctly, and in a timely manner. It avoids bandwidth
inefficient refresh as well.
There are a number of ways to identify the coding of the payload.
The first is through static types, identified by bits in the header
(like RTP is now). The second approach dynamically adjusts the
coding type based on external messages which bind a coding type
to a channel identifier. Such external messages can be either
UDP or TCP based. A related issue is synchronization of these
changes. Either the timestamps or sequence numbers can be used.
One approach to performing the synchronization is as follows:
The source sends a message reliably to the receiver, indicating
that it will change codings at timestamp N, where N is some future
timestamp (or SN). The N should be chosen far enough into the
future to guarantee that the receiver will get the TCP message
before time N. The farther away N is, the more robust the system
becomes, but the source also loses its ability to adapt quickly.
There are also several options for simple in-band signaling methods
which can assist in error recovery. This is based on the assumption
that it is better for the receiver to know that the encoding has
changed (even though it doesn't know to what), than to know nothing.
This avoids playing garbage out. A one or two bit "coding
sequence number" can be used in the header. Such a number
starts at zero. At the timestamp where the encoding changes, the
SN increments, and stays incremented until the next change. In
this fashion, we are guaranteed that the source will never play
out data using the wrong coding type. Probably just one or two
bits of this SN is necessary.
Yet another approach to changing payload types is via "pseudo-dynamic"
payloads. Before transmission of data commences, a reliable exchange
occurs which downloads a table of possible encodings of the payload
type, based on the capabilities of the source. The table then
remains active for the lifetime of the connection. This technique
can reduce the number of bits required for the payload type, since
a particular gateway is likely to support just a few codecs. However,
it is still a hard state approach, but it would only fail in the
face of end system failure, not network failure.
Our conclusion is that it is desirable to have the PTI field in
the payload. This makes it possible to do more robust rate control,
which becomes a significant issue when multiple connections are
multiplexed together (and therefore the aggregate bitrate increases).
It also makes sense to signal a table of encodings for the payload
type at the beginning of the connection. Any particular pair of
ITG will generally only support a few codecs. Therefore, dynamically
setting the codings of the PTI bit makes a more compact representation
possible without restricting the set of codecs which may be used.
Timing is a very complex issue for the multiplexing protocol.
The first question related to it is whether the protocol will
support mixing of media derived from separate clocks (i.e., voice
and video). Although doing this seems attractive, it is complex
and in opposition to the philosophy under which RTP was developed.
RTP explicitly states that separate media should be placed in
separate RTP streams. This allows for different QoS to be requested
for each media, and for clocks to be defined based on the media
type. Furthermore, this profile is geared towards the aggregation
of voice traffic generated from the POTS across the Internet.
As a result, the only source of data is from a single, 125us clock.
The next basic question is whether timestamps are needed "globally",
i.e., just one per packet independent of the number of users,
or "locally", whereby each user within a packet needs
their own timestamp. A separate question is the representation
of these timestamps in an efficient manner. When considering these
questions, the criteria to keep in mind are:
The answer to this question depends on the desired capabilities
of the protocol. In the most general case, it is possible to have
different frame sizes for each user (for example, 20ms, 10ms,
and 15ms) within the same packet. These frames can be arbitrarily
aligned in time with respect to each other (i.e., the 20ms frame
starts 5.3 ms after the beginning of another user's 10 ms frame).
The user can send packets off at any point, containing data from
those users whose frames have been generated before the packet
departure time. A somewhat more restrictive capability is to allow
for different frame sizes and time alignments, but to require
that any packet contains all the same frame sizes, all aligned
in time. The most restrictive case is to require separate RTP
sessions for users with different frame sizes. This requires a
channel to be torn down and re-setup when it changes codec. The
desire to perform flow control on a channel-by-channel basis makes
this approach unacceptable, and it is not considered further.
First consider the general case. Packets can contain frames from
some or all of the users, and those frames are not the same length
nor time aligned in any way. An example of such a scenario is
depicted in Figure 2. In the figure, there are three sources,
and the ti correspond to the times of packet emissions. When packets
are lost, the variability in the amount and time alignment of
data in each packet makes it impossible to reconstruct how much
time had elapsed based solely on sequence numbers (such reconstruction
IS possible in the single user case). Furthermore, the amount
of time elapsed can easily vary from user to user, and therefore
local timestamps are needed.
The general case introduces further complications which have to
do with jitter and delay computation. Such computations are needed
for RTCP reporting and possibly for the estimation of network
delays, used in dynamic playout buffers. In the single user case,
the jitter is computed between each packet as:
Where the Ri correspond to the reception times at the receiver
measured in RTP time, and the Si are the RTP timestamps in the
data packets. The delay is computed as the difference between
the arrival time at the receiver and generation time, as indicated
by the RTP timestamp.
In the multiple user case, these definitions no longer make sense,
as there is no single RTP timestamp any longer. Each arriving
packet will have a single arriving time (Ri), but multiple sending
times (Si,j) for each block j in the ith packet. There
are a number of alternatives for delay and jitter computation
in this case: compute such information for all users, compute
such information for a single user, or generate a single delay
and jitter estimate, but have it be based on information from
all users. There are pros and cons to each approach.
First of all, it is possible for different blocks to experience
different delays (and jitters) even though they are within the
same packet. This is because the general scenario allows for significant
variability, whereby blocks may either vary in size from packet
to packet and within a packet, or not be transmitted immediately
after their completion (the latter happens to source B in Figure 2).
Thus, it is arguable they it may be desirable to perform adaptive
playout buffering separately for each user, which would require
the storage and computation of delays for each user.
The second alternative is to compute the delays for a single user,
and use that information to size all of the other playout buffers.
This may be sub-optimal in terms of delay and loss, depending
on what fraction of the total delay and jitter are introduced
by the packetization itself. There is a second disadvantage to
this approach, however. When that particular user enters a silence
period, delay and jitter information is no longer being received,
and so estimates of network delay stop adapting. This implies
that delay estimates will be old for certain periods of time.
An alternative is to change the user from which delay and jitter
estimates are being collected.
The third alternative is to compute delay estimates based on some
measure derived from all of the users. There are several reasonable
approaches. For example, the delay estimate can be computed as:
which would yield a conservative estimate of the delay for some
users. This approach requires storage of only a single set of
delay information, although computation still grows with the number
of users in a packet.

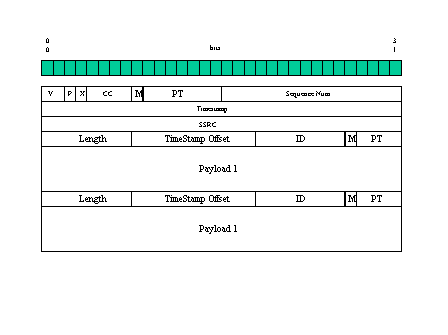

Sending local timestamps also requires extra bits in the block
headers. It is possible, however, to use offsets for the
local timestamps. A global timestamp can be used in the RTP header
(the field already exists), and each user has a modifier to indicate
position in time relative to that timestamp.
A related question is how big to make the offset field. This offset
is bounded by the difference in time between the earliest and
latest samples within a packet. Clearly, this itself is bounded
by the packetization delay at the source. For this application,
if we assume a 125us sample clock, and bound packetization delays
to 100ms, the offset field is bounded by 800 ticks, requiring
10 bits.
As a more restrictive case, we allow blocks to be present in a
packet if their frame sizes are identical and aligned in time.
Note that this does not imply identical codecs or identical block
sizes in terms of bytes; many voice codecs operate with a 20ms
or 50ms frame size. This case would allow all frame sizes of the
same size and time alignment, independent of the codec, into a
packet.
This simplifies the timing issue tremendously. Now, the scenario
is much more like the single user application. The sequence numbers
and the frame size completely determine the timing when at least
one user is active. But, when all users enter silence, a global
timestamp is needed to indicate the duration of the silence period.
The global timestamp is sufficient to reconstruct the timing in
the face of losses. Therefore, in this case, only a global timestamp
is required.
It is desirable to support a variety of different frame sizes
within such an aggregated connection, however. The way to do this
in this case is to simply mandate that different packets can contain
different frame sizes; the only restriction is within a packet.
This is not as simple as it may seem at first. Once this is done,
the relationship between sequence numbers and timing is lost.
Consider an example. There are two frame sizes, 10ms and 30ms.
Packet N contains 10ms frames, as does packet N+1 and N+2, however,
N+3 contains 30ms frames. Thus, although the difference in sequence
number between the first and fourth is three, the relative timing
is not 10ms*3 or 30ms*3. Due to this fact, the measurement of
jitter is complicated (for the same reasons described in Section
4.3.1), as it should not be done between two packets with different
frame sizes. It also makes recovery techniques based on sequence
number more complex. To resolve this problem, we use a natural
concept in RTP, which is the synchronization source (SSRC). The
approach is to have a separate SSRC for each frame size in use.
Then, sequence numbers are interpreted for each SSRC separately.
This resolves the problem with the relationship between timing
and sequence numbering. It also makes jitter and delay computations
simpler - they are now done for each SSRC separately. Furthermore,
multiple jitter (and delay, loss, etc.) values are reported to
the source, one for each frame size. This is also desirable, since
the different frame sizes will cause different packetization delays
and packet sizes, which may cause those packets to see different
delays and losses in the network than other packets.
This case has both advantages and drawbacks when compared to the
general case. As an advantage, timing is greatly simplified, and
the approach falls much in line with the original intentions of
RTP. However, it causes losses in efficiency for systems with
a variety of different frame sizes in operation simultaneously.
Such a situation arises naturally when flow control is applied
to each source individually, as opposed to altering the rate and
codec type for all of the active sources.
The question of channel identification may seem at first trivial
- simply use a 32 bit number, much like the SSRC, and be done
with it. However, 32 bits adds significant overhead. Reduction
of the number of bits for the channel ID becomes a complex issue.
Unlike the single user case, the connection may remain active
for long periods of time (days or months). The result is that
channel ID's will need to be reused during the lifetime of the
connection. It is critical to ensure that data from different
channels is not confused because of this. Large channel ID spacing
helps to resolve this issue (although it can not eliminate it),
so an added side effect of reducing the number of channel ID's
possible is an increase in the likelihood of such confusion.
The first question to be addressed is how many simultaneous users
can one expect to find in a single packet.
There are several ways to come up with some minimums and maximums.
Delay-bound
Clearly, as we add more users, the store and forward delays increase
since the packet size gets larger. Therefore, if we bound the
per-hop delay, and provide a lower bound on the codec bitrate
and packetization delay, an upper bound on the number of users
can be obtained. Consider a 2.4 kbps codec, with a 20ms frame
size. This is a reasonable minimum combination. Next, consider
50ms store and forward delays. For a T1, this limits the number
of users within a packet to 965. For a T3, it is 30 times this,
or nearly 29,000. If silence suppression is used, the number of
users within a packet is roughly half the number of active users
(on average), thus requiring twice as many channel identifiers
(1930 and 58,000). This bound doesn't seem to tight. Intuitively,
even 965 seems too large.
Efficiency bound
The entire purpose of multiplexing is to improve upon efficiency.
Therefore, we should be able to support at least as many users
as is necessary to get good efficiency. Consider the typical case,
a 16 kbps codec, with a 20ms packetization delay. This results
in 320 bits of data per user. If we assume IP/UDP/RTP (20+8+12=40
bytes = 320 bits), plus an additional word (32 bits) of overhead
per user, the efficiency vs. N becomes:
This reaches an asymptote of 90%. It is desirable to be within
a few percent of this, say 88%. Solving for N, this requires 7
users in a packet, so that we must support at least 14 active
channels (again, due to stat mux). The lower bound, therefore,
on the number of users is around 14.
MTU Bound
In many cases, there is a maximum packet size. This is usually
around 1500 bytes. If we consider a very low bitrate codec, the
minimum block size from any particular user is 32 bits (otherwise,
overheads become very large, and we lose word alignment, so 32
bits is a good minimum). Dividing 1500 bytes by 4 bytes, we obtain
a maximum of 375 users. Multiplying by two, the number of active
channels needed is around 750.
Based on these bounds, we need to simultaneously support at least
10 users, and at most 750. This would imply that at least 8 to
10 bits of channel ID are required.
It is important to guarantee that data from a particular channel
is never routed to a different channel; this would mean that a
user may hear pieces of conversations from different users, an
error we consider catastrophic. Such misrouting becomes possible
when a channel is torn down, and a new channel is set up soon
after using the same channel ID. Such a scenario is depicted in
Figure 3. Sometime after channel K is torn down, a new channel
is set up using the same channel ID, K. If the data packets (dotted
lines) are being delayed significantly, blocks from the old channel
K may still be present in the data stream after the new channel
K is established. These blocks will then be played out to the
new user of channel K. Protocol support is needed to guarantee
that this can never happen.
The solution lies in an intelligent signaling protocol. The protocol
must support a two-way handshake for all control messages. In
addition, three simple rules must be obeyed at a source when setting
up or tearing down connections:
A few simple rules must also be used at the receiver:
The use of the sequence numbers allows the receiver to separate
the old channel K blocks from the new ones. This guarantees that
the destination will not misroute packets. An additional benefit
is that the end of speech will not be clipped if the last data
packets arrive after the teardown is received. This protocol is
quite simple to implement, although it requires a table at the
receiver of the values of K for each channel ID.
Alternate solutions to this reuse problem exist which can operate
when the above restrictions are relaxed. The simplest approach
is to have the source keep a linked list of free channel ID's.
The list is initialized to contain all channel ID's, in order.
When a new channel is required to be established, the channel
ID is taken from the top of the list. When a channel is torn down,
its ID is placed at the bottom of the list. This makes the time
between channel ID reuse as long as possible, and reduces the
probability of confusion. With this method, it is no longer necessary
to include sequence numbers in the tear down messages. Also, the
receiver does not need to maintain a table.
This section discusses some of the options for coding the channel
ID field.
The fixed length approach is the most straightforward. A fixed
number of bits is assigned to the channel ID. Issues surrounding
the number of bits required have been discussed above.
In reality, the channel ID's are very redundant. Both source and
destination know the set of active connections and their channel
identifiers from the signalling messages. Therefore, if the blocks
are placed in the packet in order of increasing channel ID, very
little information actually needs to be sent. In fact, without
silence suppression, channel activity and the presence of a block
in a packet are likely to be equivalent, in which case NO information
actually needs to be sent about channel ID's.
Unfortunately, there are some practical problems with this. First,
silence suppression is used. Secondly, even if it weren't, it
is possible for the voice codecs at the ITG not to have their
framing synchronized (as in the general case above), so that a
packet may not contain data from all users. Thirdly, the source
and destination do NOT have a consistent view of the state of
the system. There is a delay while signaling messages are in transit.
A few simple mechanisms can be used to overcome these complexities.

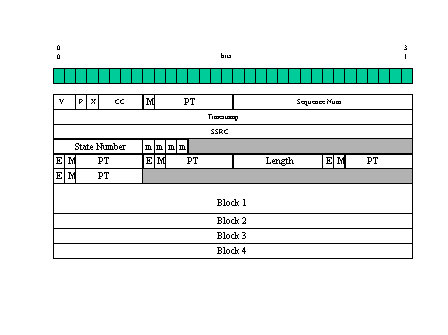

In the header of the packet, a mask is sent. Each bit in the mask
indicates whether data from a channel is present in the packet
or not. Mapping of channel ID's to bits is done by sorting the
channel ID's, and mapping the lowest number to the first bit,
next lowest to the second, etc. Therefore, if a channel has no
data for that packet, its bit is set to zero. Given that the source
and destination agree on how many connections are active at all
points in time, the number of bits required is known to both sides.
The next step is to deal with the differences in state. An additional
field, called the "state-number", perhaps 5 bits, is
sent in the header of the packet. This field starts at zero. Lets
say at some point in time, its value is N. The source wishes to
tear down a channel. It sends the tear down message to the destination,
but continues to send data for that channel (or it may choose
to send nothing, but must set the appropriate bit in the mask
to zero). When the destination receives the message, it replies
with an acknowledge. When the acknowledge is received by the source,
the source considers the channel torn down, and no longer sends
data for it, nor considers it in computing the mask. In the packet
where this happens, the source also increments the state-number
field to N+1. The destination knows that the source will do this,
and will therefore consider the state changed for all packets
whose value of the field is N+1 or greater. When the next signaling
message takes effect, the field is further increased. Even if
packets are lost, the value of the state-number field for any
correctly received packet completely tells the destination the
state of the system as seen in that packet. Furthermore, it is
not necessary to wait for a particular setup or teardown to be
acknowledged before requesting another setup or teardown.
The number of bits for the state-number field should be set large
enough to represent the maximum number of state changes which
can have taken effect during a round trip time. As an alternative,
an additional exchange can occur. After the destination receives
a packet with state number greater than N, it destroys the state
related to N, and sends back, reliably, a "free-state N"
message, indicating to the destination that state N is now de-allocated,
and can be used again. Until such a message is received, the source
cannot reuse state N. This is essentially a window based flow
control, where the flow is equal to changes in state. With
this addition, the number of bits for the state number can be
safely reduced, and it is guaranteed that the destination will
never confuse the state, independent of the number of state-number
bits used. However, the use of too few state bits can cause call
blocking or delay the teardown of inactive channels.
This problem in state difference appears to be similar to the
channel ID reuse problem described in Section 4.4.2. However,
there is an important difference. In the channel ID reuse problem,
if the packet containing the last block of a user arrives before
the signaling message tearing down that connection, there is no
problem. The destination will generally play out silence until
the signaling message is received. Here, however, the destination
must know that blocks are no longer present in the data stream
independent of when the signaling messages arrive.
There are some drawbacks to this approach. They require the source
and destination to maintain state. Any error in processing at
either end, or a hardware failure, causes a complete loss of synchronization.
This "hard-state" nature of the protocol can be relaxed
by having the source send the complete state of the system with
each signaling message, along with the "state-number"
field for which this state takes effect. This guarantees that
even in the event of end-system failure, the system state will
be refreshed whenever a new connection is set up or torn down.
Furthermore, the state can be sent periodically to improve performance.
There are many ways to actually code the length indicators. The
first question, however, is the range of lengths which must be
coded.
Here, there is a clear tradeoff between flexibility and efficiency.
A larger range can accommodate a variety of different media (such
as video) where lengths may be large. However, this comes at the
expense of a long length field, which may require another word
of header to hold. For voice, one would expect a maximum bitrate
to be 64 kbps, and around 50ms packetization delay. This yields
exactly 100 words of data. Therefore, an eight bit field is probably
sufficient for most voice applications.
In many applications, the amount of data present depends on the
voice codec in use. Frame based coders will generally send a frame
at a time. Since the codec type is indicated by the PTI field,
it may not always be necessary to send length information at all.
Even for non-frame based codecs, such as PCM, default data sizes
can be set in the standard (as in RFC 1890 []). An extension bit
can be used to indicate a non-standard length, so that when set,
a length field follows. This allows for efficient coding of the
most common cases, but allows for variable lengths with little
additional cost.
In this approach, a variable length header is used. All of the
length indicators for all of the blocks are placed together in
the beginning of the packet. However, the first four bits of this
header field indicate the number of bits used for each length
field. What follows are the length fields themselves, each using
the number of bits indicated by the first four bits. This approach
scales well, using a small overhead when the block lengths are
small, and a larger overhead when they are larger. The drawback
is a variable length header field, plus additional complexity
in the parsing. An example of this technique is depicted in Figure 4.
In the first example, the four bit indicator field has a value
of three, so that the length fields are all three bits long. The
four lengths are then 2,6,3, and 8. In the second example, the
4 bit indicator has a value of two, so that the length fields
are all two bits long. The four lengths are thus 3,2,1, and 3.
UDP always informs RTP of how many bytes are in the payload. This
itself restricts the possible length of the first block, since
its length must be less than the total packet length minus the
RTP header. Furthermore, as each block is placed into the packet,
the possible set of lengths that it can have shrinks - it must
always be less than the remaining length in the packet. This approach,
therefore, codes each length field with log2 of the number of
bits remaining in the packet. This approach works extremely well
when there is a long packet followed by several shorter ones,
whereas the previous approach performs poorly in this case. Furthermore,
it eliminates the length indicator present in the previous approach.
However, it is even more complex than the previous technique.
It can result in no savings under some conditions, especially
since the header fields must be rounded to 32 bits.
Consider an example. The total size of the packet is 31 words.
Inside of it are three blocks, the first whose length is 17, the
second 8, and the third, 6. We would code the length field with
5 bits. After this block is read, the remaining amount of data
in the packet is 14 words. Therefore, the next length field is
coded with 4 bits. After this block, the remaining amount of data
in the packet is 6 words, so the final length field is coded with
three bits. The total is therefore 5+4+3 = 12 bits. In the previous
approach (Section 4.5.3), the entire length field would have required
4 bits for the indicator (whose value would be 5), followed by
3 five bit fields, for a total of 19 bits.
One may question this example since the overhead of the length
fields itself is not taken into account when computing the remaining
length of the packet. While this can be incorporated, it makes
things even more complex, and it is not actually necessary. All
that is required is that the length fields are coded with log2(M),
where M is any bound on the remaining amount of data which can
be deterministically computed from past information. A simple
bound is the packet length minus the data seen thus far
(one can also subtract away any fixed length fields), precisely
the metric used in the example above.
Realistically, most systems will operate with codecs that generate
data in a fixed set of lengths (a frame size, for example). In
that case, the set of lengths which can appear in the packet are
usually very restricted. To take advantage of this fact, a table
can be transmitted to the receiver reliably before transmission
commences. This table can indicate the actual length of a block,
and its coding. The symbols transmitted in the data packets are
then used in this table to look up the actual lengths. This can
reduce the length field to 2 or 3 bits. These lengths then all
occur next to each other in the header. The technique now relies
on state at the receiver, and the parsing process is further complicated
by table lookups. In addition, the approach only works if you
know the set of lengths before the system begins operation. If
you allow the table to be dynamically modified during a session,
synchronization problems occur, and the system becomes quite complex.
Further gains can be achieved through the use of Huffman codes
instead of fixed length codes This only makes sense when different
codecs (and correspondingly different lengths) are used with different
frequencies. An example of such a situation is when the codec
changes to a higher rate because of music-on-hold; a rare event
in general.
The marker bit has a general functionality, but is normally used to indicate the beginning of a talkspurt. It seems like a good idea to include this bit for each user.
There will generally be overhead on a per-user basis (information
such as channel ID, length, etc.). This information can be located
in one of three places. First, it can all reside in front of the
block to which it is applicable. Second, it can all be pasted
together and reside up front in the header of the packet. The
third is a hybrid solution, where some of it resides up front
(such as channel ID), and some resides in front of the data. There
are various pros and cons to the different approaches. The hybrid
approach can be complex, since data is split into multiple places.
The case where all the header is up front has a few minor advantages.
First, it allows for a complete separation of the data from the
header. The implementation is likely to be a little less complex,
since extracting blocks does not require actually moving through
the payload.
This option is the most straightforward to implement, but has
the most overhead. The basic premise is to reuse the mixer concept
introduced in RTP. Each user is considered a contributing source,
and the gateway is considered a mixer. However, instead of mixing
the media, separate data from each user appear in the payload.
The 32 bit CSRC identifies each user, acting as the channel ID.
Data from each user is organized into blocks. Each block has its
own 32 bit header, which includes the length (12 bits) in units
of 32 bit words, Marker bit (1b), TimeStamp Offset (12b), and
Payload Type (7b). Furthermore, the payload type and marker bit
are stricken from the RTP header (since they only make sense for
an individual user), and the CC field expanded to fill the missing
bytes. This allows for a 12 bit CC field, or 4096 users in a

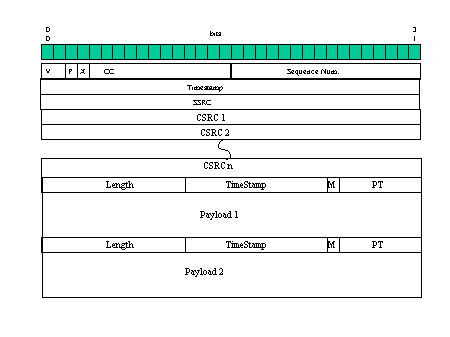

packet. Thus, the packet would look like:
This approach allows for the most amount of generality in terms
of variable length coders and coders with different frame sizes
(see Section 4.3.1). The channel ID is longer than necessary,
but using the concept of a contributing source for the channel
ID necessitates the use of the additional bits. There are several
variations on option I, many of which have been mentioned above:
I.A: Put the CSRC with each 32 bit length+M+PT field, instead
of all of them being at the beginning. This has some pros and
cons. As an interesting artifact of this change, it is no longer
necessary to have a CC field. The length passed up by UDP is sufficient
to recover the point at where you stop checking for additional
blocks from users in the payload. In fact, the length field in
the last block is not strictly necessary either.
I.B: Do the opposite of I.A. Put the length+M+PT field up front
along with the CSRC fields, with the pattern being CSRC 1, length
1, CSRC 2, length 2, etc. Here again, the CC field is not strictly
necessary.
I.C: The CSRC field can be shrunk to 8 bits. This allows for either
4 or two channel ID's to be coded in the space of one word, whereas
only one could in the current size of the field.
I.D: The CSRC field can be shrunk to 16 bits.
This option eliminates the large channel ID field present in the
previous option. In the RTP header, the CC bit is set to zero,
the marker bit has no meaning, and the payload type is TBD (possible
uses include an indication of the number of blocks in the packet).
The RTP timestamp corresponds to the generation of the first sample,
among all blocks, enclosed in this packet. A one word header precedes
each block of data. The number of blocks is known by parsing them
until the end of the RTP packet. The one word field has a channel
ID (8 bits), length (8 bits), Marker (1 bit), timestamp offset
(11 bits), and payload type (4 bits). Channel ID number 255 is
reserved, and causes the header to be expanded to allow for greater
length, payload type, and possibly channel ID encodings. The specific
format for this expanded header is for further study. Given the
compacted payload type space, it may be a good idea to allow negotiation
of the meaning for the payload type at the beginning of the connection.
It may be worthwhile to expand the length field at the expense
of the channel ID - this issue is for further study.
The format of the packet is thus:
Option II has the advantage of being able to support multiple
frame sizes within a single packet. However, it comes at the expense
of a 32 bit header (which can be large for low bitrate codecs),
and at a reduced payload type field. This option has a 16 bit
header, but does not support different frame sizes within a packet.
It therefore falls into the category described in Section 4.3.2.
Of the 16 bit header, the first bit is an expand bit (to be described
shortly), and the second bit is the marker bit. The following
6 bits indicate payload type, and the remaining 8 are for channel
ID. When the expand bit is set, an additional 16 bits are present,
which indicate the length of the block. When expand is clear,
the length is derived from the payload type. Since there is no
timestamp offset, all the blocks in the packet must be time aligned
and have the same frame lengths. Different sized frames are supported
by using a different SSRC for each frame length (see Section 4.3.2).
In the RTP header, the CC field is always zero. The marker bits
and payload type are undefined. The timestamp indicates the time
of generation of the first sample of each block. SSRC is randomly
chosen, but always different for each frame size.
The block headers are all located at the beginning of the packet, and follow each other. If the total length of the fields is not a multiple of 32 bits, it is padded out to 32. The structure of the header is such that fields never break across packet boundaries. An example of such a packet is given in Figure 7. There are 7 blocks in this example. The first two have standard lengths based on the PT field. The next one uses the expansion bit to indicate the length. The fourth uses the PT field, the fifth the expansion bit, and the last two use the PT field. The last 16 bits of the header are padded out.
This approach uses a duplicate of the RTP header as the per-block
header. It is therefore extremely inefficient (12 bytes per block),
but has several advantages: different media types can be mixed,
since the timestamps are no longer related, and little processing
is required if the sources being combined came from a single user
RTP source. It also works well when one of the users is actually
a mixer (for example, a conference bridge), since the CSRC can
be used. Its main advantage is the reduction in overhead due to
the IP and UDP headers. In addition to the standard RTP header,
an additional header is required for length indication. This header
has a number of 16 bit fields, each of which indicates a length
for its corresponding block (including the 12 byte RTP header).
The number of such 16 bit lengths fields is known by continuing
to look for additional length fields until the total length of
the packet passed up from UDP has been accounted for. If an odd
number of such length fields is required, then an additional 16
bits of padding is inserted to make the length header a multiple
of 32 bits.

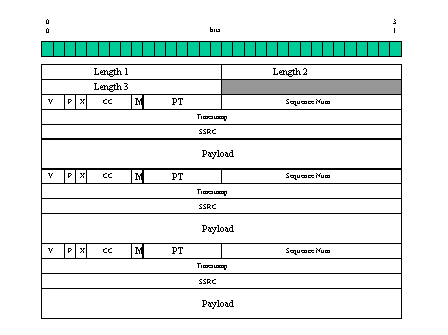

The format of such a packet is given in Figure 8.
This option uses the Implicit + Mask approach outlined in Section
4.4.3.2 to code the channel ID. In all other respects it is similar
to Option III. Now, however, the per-block header can be reduced
to one byte: 1 bit of expansion, 1 bit of marker, and 6 bits of
payload type. Furthermore, the length field (present when the
expansion bit is set) is reduced to 8 bits from 16 in Option III.
This reduction saves on space, but it also guarantees that fields
remain aligned on byte boundaries. The mask bits are present in
the beginning of the packet, and they are preceded by a 8 bit
state-number. If the number of active channels is not a multiple
of 32, the mask field is padded out to a full word. This approach
is extremely efficient, but the channel identification procedure
is more complex and requires additional signaling support.
A diagram of a typical packet for this option is given in Figure 9.
The marker bits are indicated with lowercase m's. There are four
active channels, each of which is present in this packet (all
four mask bits would then be 1). The first block has a standard
length, but the second has its expansion bit set, so that an 8
bit length field follows. The remaining two blocks have normal
8 bit headers. The last 24 bits of the header are padded to a
word boundary.
In this section, the options are compared in terms of efficiency.
Issues relating to complexity, scalability, and generality have
already been discussed in previous sections. The analysis here
consists of two parts. The first is a table, indicating the efficiency
of each option for a variety of speech codecs. Several tables

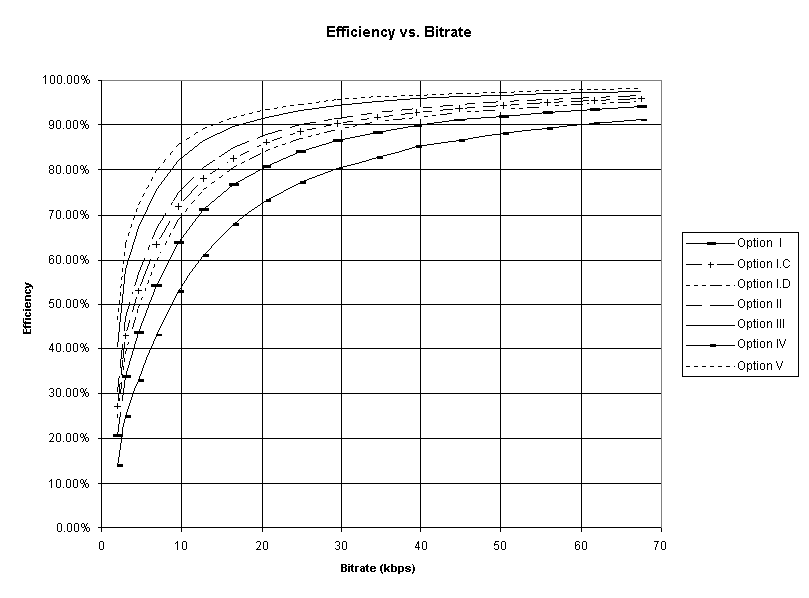

are included for different numbers of users. The second analysis
consists of a series of graphs which consider the efficiency vs.
bitrate, assuming a fixed frame size and a certain number of users.
This analysis helps to indicate the range of codecs which may
be reasonably supported with each option.
In both Table 1 and Table 2, the efficiency vs. codec for all
three options is tabulated. For G.711, G.726, G.728 and G.722,
the frame size listed is a multiple of the actual frame size of
the codec, which is too small to be sent one at a time. The efficiency
is computed as the number of words of payload such a codec would
occupy, times the number of users, divided by the total packet
size (i.e., it does not consider inefficiencies due to padding
the payload portion). Note that Option V is always superior in
efficiency. The efficiencies are generally 1 to 10 percent apart.
Table 1 considers the case where there are 10 users, and Table 2
considers the case where there are 24.
Codec | Bitrate (kbps) | FrameSize (ms) | Option I | Option I.C | Option I.D | Option II | Option III | Option IV | Option V |
G.711 | 64 | 20 | 93.02% | 94.56% | 94.12% | 95.24% | 96.39% | 90.50% | 96.84% |
G.726, | 32 | 20 | 86.96% | 89.69% | 88.89% | 90.91% | 93.02% | 82.64% | 93.88% |
G.728, | 16 | 18.75 | 76.92% | 81.30% | 80.00% | 83.33% | 86.96% | 70.42% | 88.47% |
G.729 | 8 | 10 | 50.00% | 56.60% | 54.55% | 60.00% | 66.67% | 41.67% | 69.72% |
G.723 | 5.3 | 30 | 62.50% | 68.49% | 66.67% | 71.43% | 76.92% | 54.35% | 79.33% |
G.723 | 6.3 | 30 | 66.67% | 72.29% | 70.59% | 75.00% | 80.00% | 58.82% | 82.16% |
ITU 4kbps | 4 | 20 | 50.00% | 56.60% | 54.55% | 60.00% | 66.67% | 41.67% | 69.72% |
G.722 | 64 | 15 | 90.91% | 92.88% | 92.31% | 93.75% | 95.24% | 87.72% | 95.84% |
GSM Full Rate | 13 | 20 | 75.00% | 79.65% | 78.26% | 81.82% | 85.71% | 68.18% | 87.35% |
TCH Half Rate | 5.6 | 20 | 57.14% | 63.49% | 61.54% | 66.67% | 72.73% | 48.78% | 75.43% |
IS54 | 7.95 | 20 | 62.50% | 68.49% | 66.67% | 71.43% | 76.92% | 54.35% | 79.33% |
IS96 | 8.5 | 20 | 66.67% | 72.29% | 70.59% | 75.00% | 80.00% | 58.82% | 82.16% |
EVRC | 8.5 | 20 | 66.67% | 72.29% | 70.59% | 75.00% | 80.00% | 58.82% | 82.16% |
PDC Full Rate | 6.7 | 20 | 62.50% | 68.49% | 66.67% | 71.43% | 76.92% | 54.35% | 79.33% |
PDC Half Rate | 3.45 | 40 | 62.50% | 68.49% | 66.67% | 71.43% | 76.92% | 54.35% | 79.33% |
Codec | Bitrate (kbps) | FrameSize (ms) | Option I | Option I.C | Option I.D | Option II | Option III | Option IV | Option V |
G.711 | 64 | 20 | 94.30% | 96.00% | 95.43% | 96.58% | 97.76% | 91.34% | 98.26% |
G.726 | 32 | 20 | 89.22% | 92.31% | 91.25% | 93.39% | 95.62% | 84.06% | 96.57% |
G.728 | 16 | 18.75 | 80.54% | 85.71% | 83.92% | 87.59% | 91.60% | 72.51% | 93.37% |
G.729 | 8 | 10 | 55.38% | 64.29% | 61.02% | 67.92% | 76.60% | 44.17% | 80.87% |
G.723 | 5.3 | 30 | 67.42% | 75.00% | 72.29% | 77.92% | 84.51% | 56.87% | 87.57% |
G.723 | 6.3 | 30 | 71.29% | 78.26% | 75.79% | 80.90% | 86.75% | 61.28% | 89.42% |
ITU 4kbps | 4 | 20 | 55.38% | 64.29% | 61.02% | 67.92% | 76.60% | 44.17% | 80.87% |
G.722 | 64 | 15 | 92.54% | 94.74% | 93.99% | 95.49% | 97.04% | 88.78% | 97.69% |
GSM Full Rate | 13 | 20 | 78.83% | 84.38% | 82.44% | 86.40% | 90.76% | 70.36% | 92.69% |
TCH Half Rate | 5.6 | 20 | 62.34% | 70.59% | 67.61% | 73.85% | 81.36% | 51.34% | 84.93% |
IS54 | 7.95 | 20 | 67.42% | 75.00% | 72.29% | 77.92% | 84.51% | 56.87% | 87.57% |
IS96 | 8.5 | 20 | 71.29% | 78.26% | 75.79% | 80.90% | 86.75% | 61.28% | 89.42% |
EVRC | 8.5 | 20 | 71.29% | 78.26% | 75.79% | 80.90% | 86.75% | 61.28% | 89.42% |
PDC Full Rate | 6.7 | 20 | 67.42% | 75.00% | 72.29% | 77.92% | 84.51% | 56.87% | 87.57% |
PDC Half Rate | 3.45 | 40 | 67.42% | 75.00% | 72.29% | 77.92% | 84.51% | 56.87% | 87.57% |
The following figure considers the efficiency of the protocol
vs. bitrate. For this case, the frame size is fixed at 20ms, and
the number of users at 24. As the bitrate varies, the block size
varies, and therefore the efficiency does as well. The efficiency
here is computed in a slightly different manner than the graph
above. Here, the efficiency is the bitrate times the frame size
(without padding to 32 bits), divided by the same quantity plus
the packet and block overhead. This avoids the otherwise sawtooth
behavior of the graph, which makes it very difficult to read.
The graph is very illustrative. The ordering of the efficiencies
is no surprise; option V is always superior. However, the difference
between the options is interesting. Despite the difference in
overhead by a factor of two, Option V and Option III are very
close in efficiencies over a wide range of bitrates. This is due
to the fact that it requires a lot of users at low bitrates to
overcome the IP/UDP/RTP header overhead, and at higher bitrates,
the payload sizes are large enough to make the difference in block
headers inconsequential.
